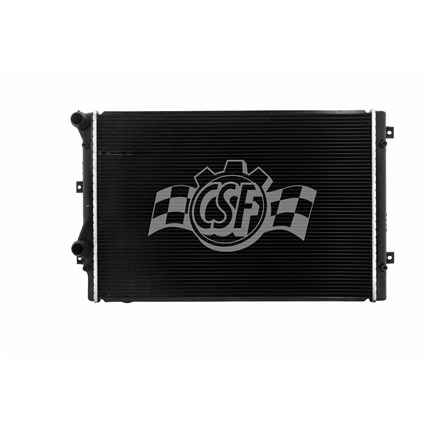

CSF Radiator Fits 2012-2016 Volkswagen Beetle 2.0L

Thoroughbred Sku #: CSF3626
Manufacturer Sku #: 3626

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$150.64

Popular Fitments: Volkswagen Beetle 2.0L 2016-2012 | Volkwagen GTI 2.0L 2014-2010

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
CSF-logo

View More Products From

CSF Radiators

Product Details

Product Name: CSF Radiator Fits 2012-2016 Volkswagen Beetle 2.0L
Manufacturer: CSF Radiators
Manufacturer Part #: 3626
Thoroughbred Diesel Part #: CSF3626
Fitment Notes: Popular Fitments: Volkswagen Beetle 2.0L 2016-2012 | Volkwagen GTI 2.0L 2014-2010

1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards and sold worldwide for over 50 years - Over 30 million units sold!;Our Radiators are carefully engineered and Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength and Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, and tested on Radiator during assembly

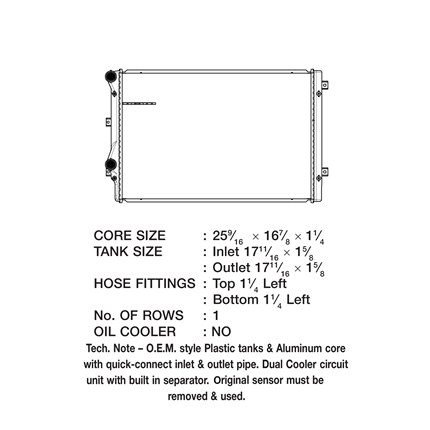

Specs

Bottom Hose Fitting (in): 1 1/4 Left (in)
Box Height (in): 4 11/16
Box Length (in): 32
Box Weight (lbs): 11
Box Width (in): 20 3/8
Core Length (in): 25 9/16 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 17 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 17 11/16
Inlet Width (in): 1 5/8
No. Of Rows: 1
Outlet Length (in): 17 11/16
Outlet Width (in): 1 5/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks and Aluminum core;with quick-connect inlet and outlet pipe;Dual Cooler circuit unit with built in separator. Original sensor must be removed and used.
Top Hose Fitting (in): 1 1/4 Left (in)

Fitment

MakeModelQualifiersYear
AudiA3
  • Position: N/A
  • 2.0L L4 1984cc 121ci
  • GAS
2009-2013
VolkswagenBeetle
  • Position: N/A
  • 2.0L L4 1984cc 121ci
  • Turbocharged
  • GAS
  • CBFA
2012-2013
VolkswagenGTI
  • Position: N/A
  • 2.0L L4 1984cc 121ci
  • Turbocharged
2010-2014

Reference

Reference NumberReference Name
13235DPI
1K0 198 251OEM
VW3010159Partslink
