Thoroughbred Sku #: CLICS-FLVL-COM-CS-17 Manufacturer Sku #: CS-FLVL-COM-CS-17
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$2,150.00
2017 - 2022 Ford F250
2017 - 2022 Ford F350
2017 - 2022 Ford F450
2017 - 2022 Ford F550
Product Name:Carli Suspension 2.5"/3.5" Leveling Commuter 2.0 Suspension System 2017-2022 Ford 6.7L Powerstroke Manufacturer: Carli Suspension Manufacturer Part #: CS-FLVL-COM-CS-17 Thoroughbred Diesel Part #: CLICS-FLVL-COM-CS-17 Fitment Notes: 2017-2022 Ford 6.7L Powerstroke

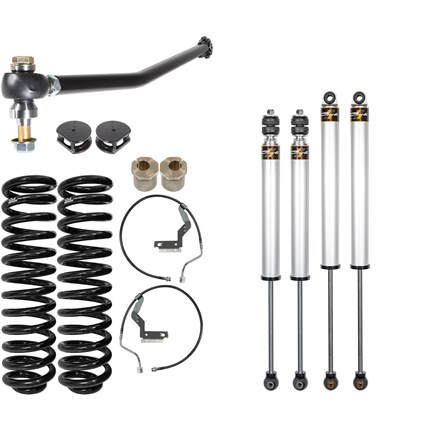

Carli Suspension CS-FLVL-COM-CS-17 3.5 inch Commuter lift system for the Ford F250 / F350 4wd diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires (w/trimming). It is perfect for Ford owners wanting the best on-road ride quality and are not planning on much off-roading.
Featured in this lift kit system are 3.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.
To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.
Completing the front-end enhancements, this package incorporates Caster Shims to enhance steering responsiveness. Additionally, a custom High-Clearance Bump Stop Drop is provided to ensure the springs maintain proper clearance from the factory bump stop.
In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.
Carli Suspension Features:
