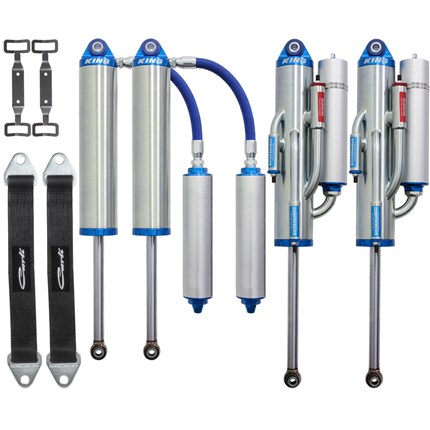

Carli Suspension King Unchained 3.5 Long Arm Shock Package 2003-2013 Dodge Ram 2500/3500 5.9L/6.7L Cummins

Product Name:Carli Suspension King Unchained 3.5 Long Arm Shock Package 2003-2013 Dodge Ram 2500/3500 5.9L/6.7L Cummins
Manufacturer: Carli Suspension
Manufacturer Part #: CS-DUC35SPKG-03-D-LA
Thoroughbred Diesel Part #: CLICS-DUC35SPKG-03-D-LA
Fitment Notes: 2003-2013 Dodge Ram 2500/3500 5.9L/6.7L Cummins

Where the Performance 2.5” Long Arm System is more balanced, the tuning in the UnChained System is enough to put the build quality of the rest of the truck to the test and will ride a bit stiffer on the road than our other high-end systems; albeit, still much better than stock. At this level of suspension, customers should install a cage as the off-road capability far exceeds the capability of the truck itself. The Front Boasts massive, long-travel 3.5” King Shocks with an off-road oriented tune; the rear, 3.0” 4-Tube King Bypass Shocks. The 4-tube bypass will have far more bottom-out resistance than their smooth-body counterparts and their capability is user tunable to achieve exactly the rear ride desired by the purchaser.

Shock Towers and Rear Crossmember Gussets Required to install. Coil Buckets must also be bored to 4.5" upper and lower. Both Axle Truss and Rear Shock Mounts HIGHLY Recommended.

Carli Suspension Features:

• Carli Custom Tuned
• King 3.5" Remote Reservoir Front Shocks
• Carli Tuned - King 3.0", 4-Tube Bypass Reservoir Rear Shocks
• 17-4 Stainless Steel Shock Shafts\\
• Short Reservoir Mounts & Limit Straps Included
• Fitment: 2003-12 Ram 2500/3500 4x4, Diesel
• Requires 3" Carli Linear Coils and 1" Full Spring Pack
• For more information on Carli Suspension call us at 1-859-737-4966.
