Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: CLICS-DC20-1419-D-AR Manufacturer Sku #: CS-DC20-1419-D-AR
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$3,700.00
2014 - 2022 Dodge Ram 2500
Product Name:Carli Suspension 3.25" Commuter 2.0 Kit 2014-2022 Ram 2500 6.7L Cummins With Factory Rear Air Suspension Manufacturer: Carli Suspension Manufacturer Part #: CS-DC20-1419-D-AR Thoroughbred Diesel Part #: CLICS-DC20-1419-D-AR Fitment Notes: 2014-2022 Ram 2500 6.7L Cummins
Carli Suspension CS-DC20-1419-D-AR Commuter 3.25 inch lift system for the Dodge Ram 2500 4wd diesel models with factory rear air suspension is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best on-road ride quality and are not planning on much off-roading.

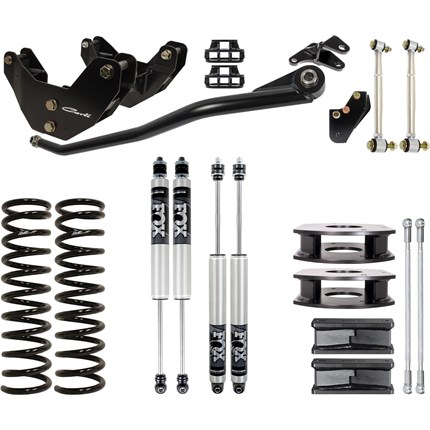

Featured in this lift kit system are 3.25 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Fox 2.0 Performance Series shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.
To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.
Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.
In the rear Carli uses a 2 inch spacer for the factory air bags made of heavy gauge steel. Fabricated rear bump stop spacers are included to drop the factory stops 2 inches. Also included are extended machined sensor links for the factory air bags to continue to function properly, extended sway bar endlinks to eliminate binding and a rear track bar bracket to keep the axle centered.
Carli Suspension Features:
