Carli Suspension 3.25" Backcountry 2.0 Kit 2014-2022 Ram 2500 6.7L Cummins w/ Factory Rear Air Suspension

Product Name:Carli Suspension 3.25" Backcountry 2.0 Kit 2014-2022 Ram 2500 6.7L Cummins w/ Factory Rear Air Suspension
Manufacturer: Carli Suspension
Manufacturer Part #: CS-DBC20-1419-D-AR
Thoroughbred Diesel Part #: CLICS-DBC20-1419-D-AR
Fitment Notes: 2014-2022 Ram 2500 6.7L Cummins

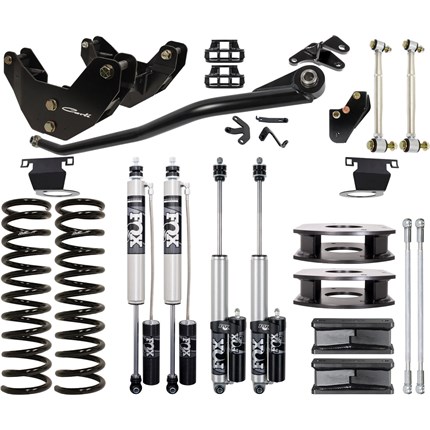

Carli Suspension CS-DBC20-1419-D-AR Backcountry 3.25 inch lift system for the Dodge Ram 2500 4wd diesel models with factory rear air suspension is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 3.25 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Fox 2.0 Performance Series remote reservoir shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

In the rear Carli uses a 2 inch spacer for the factory air bags made of heavy gauge steel. Fabricated rear bump stop spacers are included to drop the factory stops 2 inches. Also included are extended machined sensor links for the factory air bags to continue to function properly, extended sway bar endlinks to eliminate binding and a rear track bar bracket to keep the axle centered.

Carli Suspension Features:

• 3.25 inch front lift / 2 inch rear lift
• Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Fox 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Radius arm drop brackets keep proper front caster
• Rear heavy gauge steel spacers lift the rear air bags
• Factory air suspension keeps full functionality
• Front Travel = 9.6" / Rear Travel = 9" (50% more suspension travel than stock)
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires
• For more information on Carli Suspension call us at 1-859-737-4966.
