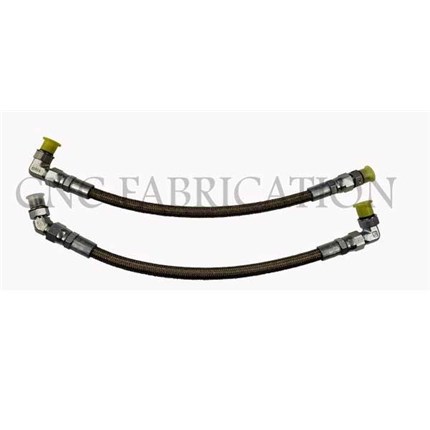

Product Name: CNC Fabrication Replacement High Pressure Oil Pump Lines - Early 99-03 Ford 7.3L
Manufacturer: CNC Fabrication
Manufacturer Part #: 424003
Thoroughbred Diesel Part #: CNC424003
Fitment Notes: Early 1999-2003 Ford Powerstroke 7.3L

Early 99-03 Ford Powerstroke 7.3L Replacement High Pressure Oil Pump Lines. Replace your high-mileage (and expensive) OEM High Pressure Oil Pump lines with the Number 1 selling CNC Fabrication upgraded HPOP lines!

These lines are to replace the typical high mileage expensive leaky OEM HPOP lines that have the STC fittings. Kit comes with 2 hoses and all necessary fittings to eliminate the quick connect fittings (STC) on the heads and the HPOP itself.


Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use the pictures on this page for reference. The lines are marked PA for passenger head and DR for driver head.

After installation, be sure there is no other lines/wires that are touching the lines that could potentially rub through and damage either the hpop line or the other line that may be touching it.

Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Although it is not necessary as there is room on the driver side, but the eyelet for engine removal may need to be slightly bent in using a large prybar through the eyelet hole bending it towards the fuel bowl.

Do not use any thread sealant on any of the fittings, except on the pump.

IF you choose to use any, use Loctite 680 or 620 retaining compound (green), but it is not necessary. If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.

Pump Fittings:

  • 28FT/LBS

Head Fittings:

  • 23FT/LBS

Hose Ends:

  • 21FT/LBS and remove the spring checks inthe pump under the stock fittings

CNC Fabrication Replacement High Pressure Oil Pump Lines Features:

  • Advanced HPOP lines with DuPont Teflon lining.
  • Burst pressure rating of 16,000psi and working temperature rating of 400 F
  • Nominal working pressure is 5000psi at 72 F and 3000psi at 400 F
  • Kit comes with Genuine Parker Triplelok fittings
  • High quality Viton o-rings
  • Made in the USA
  • For more information on CNC Fabrication call us at 1-859-737-4966

Notice: We know it may be cheaper for those wanting to save some money and have a local hydraulic shop make lines, but in our 20yrs experience, it is not advisable due to the amount of thermal cycling and engine sees.

Normal hydraulic is meant for normal hydraulic use, Not on the engines. See pictures of what happens to our competitor lines. Dry rot and blistering of the hose. We have sold over 10,000 kits.


  • It shows in the install videos to remove the check valve from the HPOP when installing the new lines. What is the purpose of this, does it add oil flow or what?

    Danny Ely | 3/26/2023

    Not required with the new lines and fitting’s
