Thoroughbred Sku #: CNC424010 Manufacturer Sku #: 424010
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$90.95
1994 - 1997 Ford F250
1994 - 1997 Ford F350
1994 - 1997 Ford F450

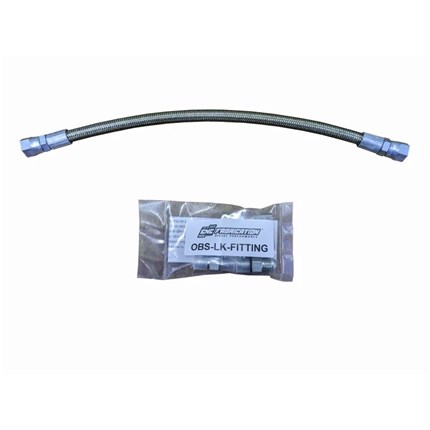

Product Name: CNC Fabrication OBS Passenger HPOP Line With Fittings - 94-97 Ford Powerstroke 7.3L Manufacturer: CNC Fabrication Manufacturer Part #: 424010 Thoroughbred Diesel Part #: CNC424010 Fitment Notes: 1994-1997 Ford Powerstroke 7.3L
This line is a replacement passenger side line for the '94.5 through '97.
If you have e-fuel you can also use our SD passenger line for a cleaner install.
CNC Fabrication OBS Passenger HPOP Line With Fittings Features:
We know it may be cheaper for those wanting to save some money and have a local hydraulic shop make lines, but in our 25yrs experience, it is not advisable due to the amount of thermal cycling and engine sees. Normal hydraulic is meant for normal hydraulic use, NOT on the engines. See pictures of what happens to our competitor lines. Dry rot and blistering of the hose.
INSTALLATION:
Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example. The fittings are marked with numbers to match installation location (see below for reference). After installation, be sure there are no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it. Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary. Sealant is not necessary, but IF you choose to use any, use Loctite 680 or Permatex 64000 retaining compound (green) only on the fittings installed in the HPOP. If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.
*REMOVE THE SPRING CHECKS IN THE PUMP UNDER THE STOCK FITTINGS, DO NOT RE-INSTALL*
HOSE IDENTIFICATION: 98.5-03 2 LINE-BOTH SIDES ARE SAME LENGTH. 94.5-97 2 LINE- PASSENGER IS LONGER OF THE 2. **FOR ANY 3 LINE KIT THE SHORTEST LINE IS THE CROSSOVER HOSE.
FITTING MARKINGS: 1- FRONT PUMP PORT 2- REAR PUMP PORT 3- DRIVER HEAD 4- 94.5-97 PASSENGER HEAD 5- 98.5-03 PASSENGER HEAD AND CROSSOVER **94.5-97 driver side fitting gets moved forward one port on the head to match 98.5-03**
Pump Fittings: 28FT/LBS • Head Fittings: 23FT/LBS • Hose Ends: 21FT/LBS
