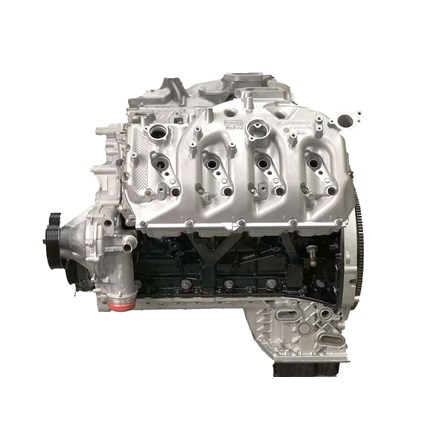

Choate 6.7 Powerstroke Short Block Daily Driver

Product Name: Choate 6.7 Powerstroke Short Block Daily Driver
Manufacturer: Choate Engineering Performance
Thoroughbred Diesel Part #: CEPFDSHBLKDLYDRVR
Fitment Notes: 2011-2019 Ford Powerstroke 6.7L

2011-2012

6.7 Powerstrokes Come stock from Ford with a 6-bolt flexplate and torque converter that are no longer manufactured. All 6.7 Powerstroke balanced assemblies from Choate Engineering come with the updated 8-bolt flexplate from 2013+ and require the customer to update the torque converter or purchase one from us directly.

2017+

6.7 Powerstrokes have a larger “Hole Diameter” for the motor mounts and bolts.

**Optional Parts are not installed. Optional parts are covered under the manufactures warranty and not by CHOATE.**

THIS BUILD INCLUDES:

Full CNC blueprint machining, (bore, deck, hone, and line honed) - The Cylinder bores are blue print bored to a true 90 degrees from the crankshaft center line, prior to being diamond honed to within .0002? for precise piston to cylinder bore clearances. We main bore and line hone the crankshaft which is honed to precisely align the crankshaft in the engine block. We bore the block back to the crankshaft center line and hone the block to Ra 13 finish. The piston diameter measured to the nearest .0001? matched to cylinder bores. The Cylinder block is surfaced to a finish of 30 Ra or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface. This is mandatory for proper sealing of a MLS Gasket.

Connecting Rods, New Damper and New Flex plate with automatic transmissions. - Check both wrist pin and crank pin to rod clearances.

New upgraded Pistons .10 - .30? over - NEW Pistons, Rings, Pin Retainers weight matched prior to crank balancing

Crankshaft - Balanced with the Rotational assembly checked for run-out inspected for fatigue. Crankshaft is Polished and ground to .0005 concentricity or less

New Rod, Main and Cam Bearings

Camshaft - Polished and Inspected

Install Rear Main Seal

Install New Bed Seals

Install New Rear Cover Gasket

Install Upper and Lower Oil Pan Gaskets

Install Pickup Tube O-ring

Rear Cover Installed

Choate 6.7 Powerstroke Short Block Daily Driver Features:

• Assembled by OUR Professional Team in house
• Perfect for daily driving use, family haulers and some towing.
• 5 year 100K warranty on our Daily driver builds with upgrade-able options
• For more information on Choate Engineering Performance call us at 1-859-737-4966
