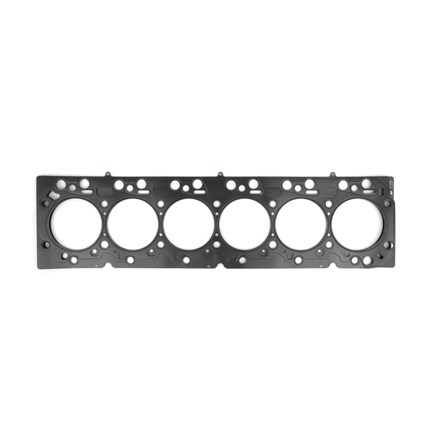

Cometic MLX Head Gasket - 07.5-18 Dodge Cummins 6.7L (.061")

Product Name: Cometic MLX Head Gasket - 2007.5-2018 Dodge Cummins 6.7L (.061")
Manufacturer: Cometic Gasket
Manufacturer Part #: C5609-061
Thoroughbred Diesel Part #: CGSC5609-061
Fitment Notes: 2007.5-2018 Dodge Cummins 6.7L

Cometic C5609 MLX Head Gasket for your 2007.5-2018 Dodge 6.7L Cummins is comprised of multiple layers of stainless steel due to it's increased strength, ability to rebound and resistance to corrosion. The outer layers of the gaskets are embossed and coated on both sides with Viton - a flouroelastomer rubber based material that is heat resistant to 250C /482F Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is an uncoated stainless steel layer that is folded back upon itself to create the locking portion of the bore seal.

MLX Head Gasket Highlights:

• Incorporates a locking bore seal for even greater cylinder sealing potential.
• Provide maximum sealing performance for today's high output engines and requires no sealants
• Great for aluminum heads to aluminum blocks and aluminum heads to cast iron blocks withstanding the shearing force created by the two materials.
• No need to re-torque, the embossing design of the MLX gasket promotes an even clamp load across the sealing surface allowing for measurable reduced bore distortion

Cometic Cylinder Head Gasket Features:

• Material: MLX

• Compressed Thickness: .061

• Bore Shape: Round

• Bore Size (IN): 4.312

• # of layers: 5

• Orientation: None
• For more information on Cometic Gasket call us at 1-859-737-4966
