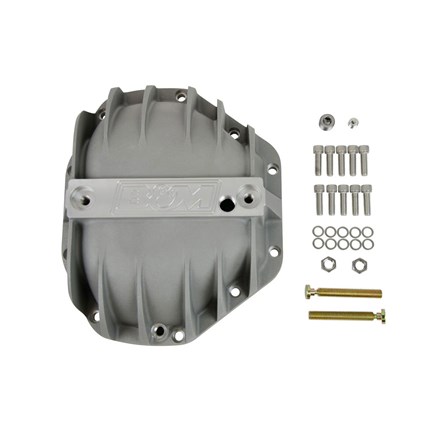

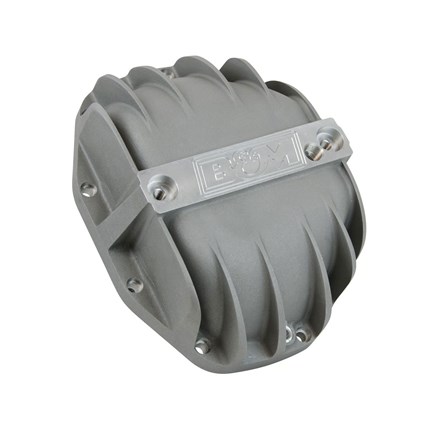

B&M Hi-Tek Differential Cover for DANA 80 (Raw) - 1994-2002 Dodge RAM 2500/3500

Product Name: B&M Hi-Tek Differential Cover for DANA 80 (Raw) - 1994-2002 Dodge RAM 2500/3500
Manufacturer: B&M
Manufacturer Part #: 10315
Thoroughbred Diesel Part #: BNM10315
Fitment Notes: for DANA 80 (Raw) - 1994-2002 Dodge RAM 2500/3500

B&M engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

B&M Hi-Tek Differential Cover Features:

• Load Bolts Provide Additional Support to Bearing Caps
• Magnetic Drain Plug for Easy Servicing
• Additional .75-quart Fluid Capacity
• A356.0-T6 Aluminum Construction
• Over 65 Years of B&M Quality
• Lifetime Limited Warranty
• Machined B&M Logo
• For more information on B&M call us at 1-859-737-4966

Specs:

• Additional Fluid Capacity (qts) No
• Additonal Fluid Capacity (qts) No
• Bolt Count 10
• Bolt Pattern Dana 80
• Bolt Quantity 10
• Bolt/Studs Included Yes
• Brand B&M
• Call Out Size (in) 3.8
• Carrier Main Cap Support Yes
• Category Driveline and Axles
• Color/Finish Raw Aluminum
• Drain Plug Included Yes
• Emission Code 5
• Filler Plug Included Yes
• Finish Cast Aluminum
• Gasket Included No
• Gasket Or Seal Included No
• Gaskets Included No
• Grade Type Performance
• Material A356.0-T6 Aluminum
• Mounting Bolt Hole Quantity 10
• Mounting Bolts Included Yes
• Product Type Differential Cover
• Studs Included Yes Sub Category Differential
• Thickness (in) 3.8
• UPC 019695103156
• California Proposition 65 Chemical Name Chromium (hexavalent compounds)
• California Proposition 65 Required Yes
• Part Number 10315

Emissions

• This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
