Banks MAP Sensor Relocation Kit (Dual) - 2023.5-2026 GM Duramax 6.6L

Product Name: Banks MAP Sensor Relocation Kit (Dual) - 2023.5-2026 GM Duramax 6.6L
Manufacturer: Banks
Manufacturer Part #: 64415
Thoroughbred Diesel Part #: BAN64415
Fitment Notes: 2023.5-2026 GM Duramax 6.6L

Protect your 2023.5-2026 6.6L Duramax's manifold temperature and pressure sensors from dirty exhaust gas and sticky oil buildup with a Banks MAP Sensor Relocation Kit. A contaminated sensor can cause inaccurate readings, adversely affecting fuel economy and power output. The small billet aluminum device relocates the sensor out of the soot-filled exhaust stream.

Fiitnent Note:

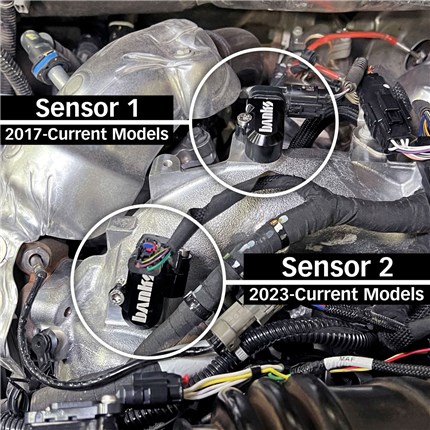

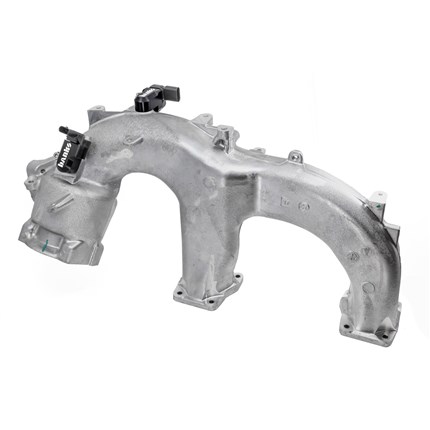

• Beginning in mid 2023, GM seperated the MAP sensor into two sensors: a manifold temperature sensor located in the former MAP sensor position and a pressure sensor located in a new lower position. Check to ensure you have twwo sensors on the cast aluminum intake manifold.

Why It's Better

KEEPS YOUR MAP SENSORS CLEAN

Your engine’s EGR (Exhaust Gas Recirculation) and PCV (Positive Crank Case Ventilation) systems draw unburnt exhaust gasses and oil vapor into the combustion chambers to lower combustion temperature, reduce NOx, and keep harmful gasses from entering the atmosphere.

LESS CLEANING.
MORE POWER.

This recirculated exhaust gas and sticky oil vapor adheres to the MAP sensors' delicate electronics causing inaccurate readings. This results in incorrect fuel calculations reducing fuel economy and power output.

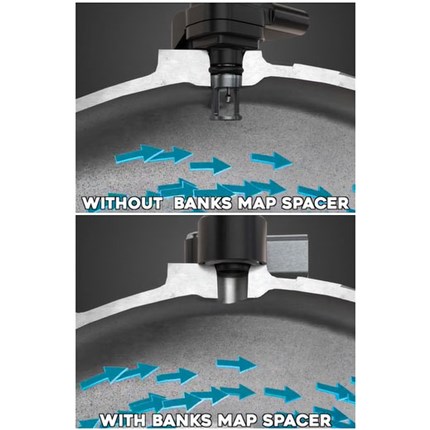

Banks MAP Sensor Relocation Kit is an attractive, easy way to prevent this oily soot from building on your MAP sensors by moving them up and out of the contaminated exhaust stream.

EASY INSTALLATION

Requiring only a few minutes to install, Banks MAP Sensor Relocation Kit eliminates the need for periodic cleaning. It protects your sensors from faulty readings, ensuring proper air-fuel ratios are always calculated by your Duramax’s ECM.

With a machined logo, show your Banks pride while extending your sensors' cleaning or replacement intervals.

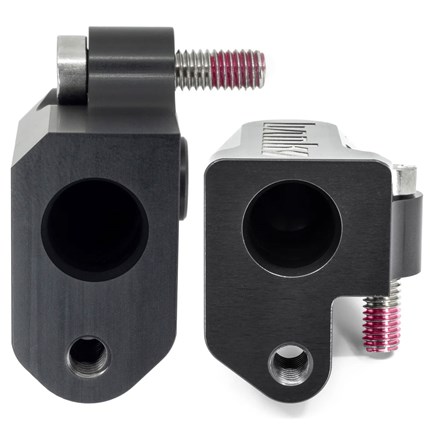

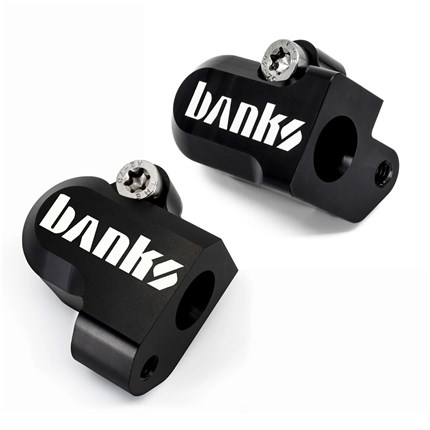

Banks MAP Sensor Relocation Kit Features:

• Relocates manifold temperature and pressure sensors
• Keeps your Duramax engine running efficiently
• Reduces soot and oil buildup
• Extends sensor service interval
• Billet aluminum construction
• Black anodized finish
• CNC tool paths left for aesthetics
• Machined Banks logo
• Includes stainless hardware
• For more information on Banks call us at 1-859-737-4966.
