Baer Brakes Big Claw HD Performance Rotors, Rear - 2020-2025 GM 2500HD/3500HD 2/4wd, w/Single Rear Wheel (SRW)

Thoroughbred Sku #: BAB2302083-2
Manufacturer Sku #: 2302083-2

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:


$967.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
bear-brakes

View More Products From

Baer Brakes

Product Details

Product Name: Baer Brakes Big Claw HD Performance Rotors, Rear
Manufacturer: Baer Brakes
Manufacturer Part #: 2302083-2
Thoroughbred Diesel Part #: BAB2302083-2
Fitment Notes: 2020-2025 GM 2500HD/3500HD 2/4wd, w/Single Rear Wheel (SRW)

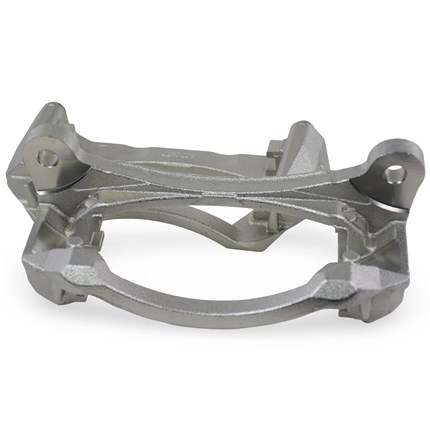

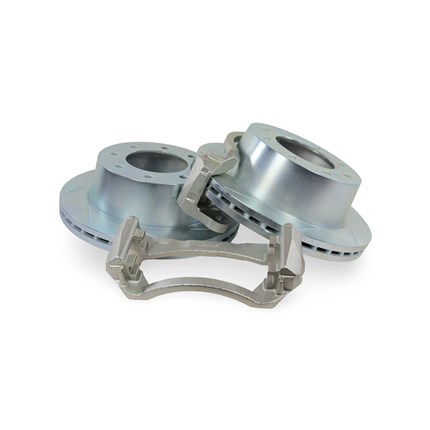

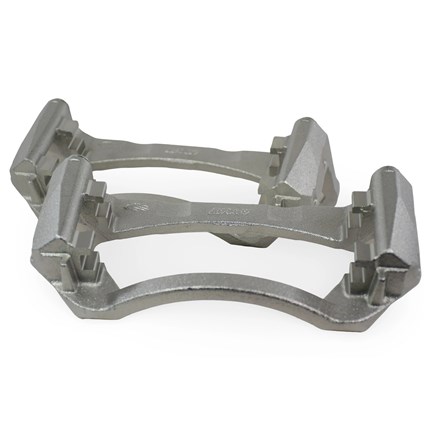

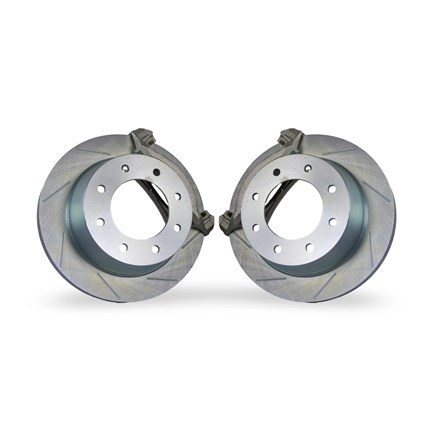

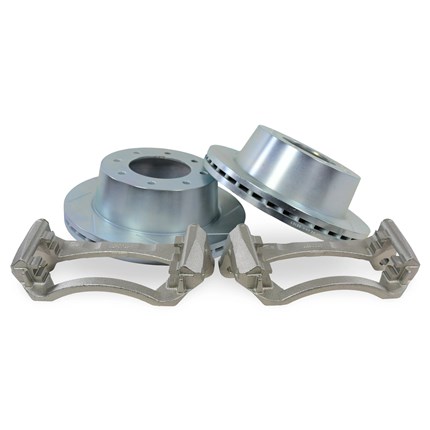

The Baer Big Claw HD performance rotor upgrade is a simple, bolt-on kit that is designed to provide improved braking performance specifically for HD pickups. The kit includes a pair of 1pc, larger than stock diameter rotors, and caliper relocation anchor brackets. The larger diameter rotors are purpose cast with added material in the fire path, a directional curved vane design and slotted friction surface that together provide increased brake torque and improved cooling for more consistent braking performance and reduced brake fade. The Big Claw HD rotors feature a zinc-plated finish for improved corrosion resistance and are designed to fit many OE wheels. NOTE: Baer cannot however guarantee fit of the Big Claw rotors into any specific wheel and recommend the customer verify fit using the template specific to the system you are interested in and the wheel of choice, including spare tire/wheel.

Features:

  • Larger Than Stock Rotor for Increased Brake Torque and Reduced Stopping Distance (Use Template Below to Verify Wheel Fitment including Spare Tire/Wheel)
  • Slotted Friction Surface Provides an Escape Route for the Dust and Gasses Produced During Braking for a Consistent Pedal Feel
  • Features 1-Piece, Purpose-Cast Rotor with Increased Mass in Friction Area for Better Heat Absorption
  • Directionally Vaned Rotor Acts Like a Centrifugal Pump to Maximize Air Flow for Better Heat Dissipation and Cooling
  • Direct Bolt-on System, No Bleeding of the Brakes Required
  • Anchor Will Accept OE Abutment Clips, OE Pads/OE Replacement Pads and Caliper
  • Zinc Plated Finish to Help Resist Rust and Corrosion and an Improved Visual Appearance
ABS Tone Ring IncludedNo
ApplicationsGM 2500/3500 HD 20-24
AxleRear
Brand Baer Brakes
CategoryBrake
Center Hole Diameter127.152 MM
5.006 IN
ConstructionFull Cast
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Directional or Non-Directional Brake SurfaceDirectional
Discard Thickness1.260 IN
32 MM
Emission Code6
Export DescriptionBrake Components
Grade TypePerformance
MaterialCast Iron
Min Wheel Dia (verify using template)Minimum Wheel Diameter Will Vary Depending on Specific Wheel, Always use Template to Verify Fitment in a Certain Wheel
Nominal Thickness1.339 IN
Outside Diameter15.000 IN
Overall Height119 MM
4.685 IN
part typeDisc Brake Rotor Set
Product TypeBig Claw Rotors
Prop 65 - Long LabelWARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
Prop65A
Rust Resistant CoatingYes
Solid Or Vented Type RotorVented
Stud/Lug Hole Circle Diameter180 MM
7.09 IN
Stud/Lug Hole Quantity8
Sub CategoryDrums and Rotors
Surface TypeSlotted & Zinc Plated
System NotesFits Single Rear Wheel Only
It is recommended to also verify fitment of spare tire/wheel
TemplateZ295U
TitleBIG Claw HD Disc Brake Rotors Rear
WarrantyManufacturer's Limited 1 Year Warranty
Weight43.36 LB
UPC090127969991
Part Number2302083-2
