ATS Full Allison Conversion Kit Transmission Build Replaces 4 Wheel Drive Aisin AS69RC 2019-2022

Product Name:ATS Full Allison Conversion Kit Transmission Build Replaces 4 Wheel Drive Aisin AS69RC 2019-2022
Manufacturer: ATS
Thoroughbred Diesel Part #: ATS319-9X5-2464

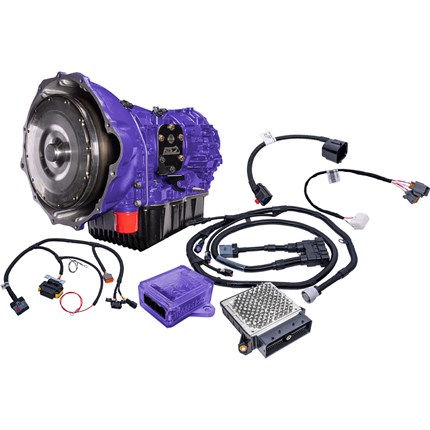

ATS Diesel has engineered the first filly integrated Allison transmission swap for Cummins powered vehicles. Backed by our proprietary TRANSLator technology and our exclusive, patent-pending Allison to Cummins Bellhousing, the ATS Diesel Allison Swap offers complete factory functionality from your late model Ram; from push button start to tow/haul mode, electronic range select and electronic transfer case functionality. Our revolutionary new TRANSLator can-bridge module allows the Allison TCM to communicate with the Ram ECM and offers a seamless integration of all factory options on the truck with a nearly plug-and-play installation. Our exclusive, patent-pending Allison to Cummins Bellhousing allows a perfect factory match between the Allison and the Cummins with no additional fabrication required. The all-new ATS Diesel Allison Conversion Kit includes all necessary hardware and software to install an Allison LCT1000 behind your Cummins.

ATS Full Allison Conversion Kit Stage Features:

• Stage 1 - Trans + Deep Pan
• Stage 2 - Trans + Deep Pan + Billet Input Shaft
• Stage 3 - Trans + Deep Pan + Billet Input Shaft + Billet Intermediate Shaft
• Stage 4 - Trans + Deep Pan + Billet Input Shaft + Billet Intermediate Shaft + Billet Output Shaft
• Stage 5 - Trans + Deep Pan + Billet Input Shaft + Billet Intermediate Shaft + Billet Output Shaft + Billet P2 Carrier & Billet C2 Hub w/ Modified P1 Sun Gear
• For more information on ATS call us at 1-859-737-4966

ATS Swap Cummins to Allison Conversion Package Stage Comparison
