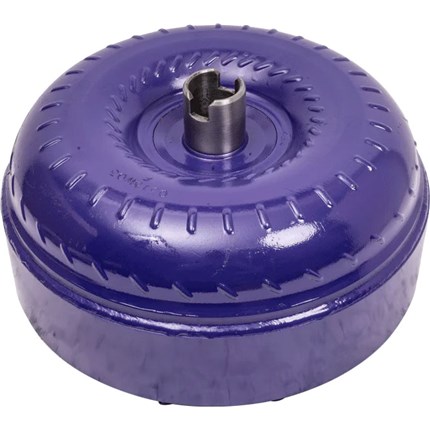

ATS Five Star Performance 47RH / 47RE / 48RE Torque Converter Factory 1500-1700 RPM Stall Speed - 1994-2007 Dodge Cummins 5.9L

Thoroughbred Sku #: ATS3029532164-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$1,509.99

free-shipping-no-handling

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT
Add a Core Return Shipping Label?

Product Details

Product Name: ATS Five Star Performance 47RH / 47RE / 48RE Torque Converter Factory 1500-1700 RPM Stall Speed - 1994-2007 Dodge Cummins 5.9L
Manufacturer: ATS
Manufacturer Part #: 3029532164
Thoroughbred Diesel Part #: ATS3029532164
Fitment Notes: 1994-2007 Dodge Cummins 5.9L

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.

The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS Five Star Torque Converter.

Fits:

  • 1994-2007 Dodge Ram 2500|3500 Truck w/5.9L Cummins Engine and 47R-H|47-RE|48-RE Transmission

ATS Features:

  • Five Star Viscus Clutch Drive Torque Converter
  • 1300-1500 RPM Stall Speed
  • Billet Stator F-Trim
  • Positive Impeller
  • Patented Viskus Clutch Drive System for increased efficiency
  • Billet Cover with Patented Square Flank Drive
  • Square Tab Construction (Not Round)
  • Viskus Disc CNC Laser Cut Clutch Plates
  • Billet Piston with Patented Flank Drive Tab design
  • Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
  • Redesigned Spring Dampener supports increased torque loads
  • 4340 hardened turbine splines provide longevity and reliability
  • Fully welded turbine and impeller vanes
  • CNC Stator with high flow windows increase oil flow, providing increased efficiency
  • Full roller bearing construction between high load areas
  • 4340 CNC cut pump drive hub locked into impeller housing
  • Plasma welded for unsurpassed strength
  • Sold Individually
  • SKU: 3029502164
  • For more information on ATS call us at 1-859-737-4966.
