Mag-Hytec AA 14-10.5 Differential Cover - Dodge Rear 2003 to present 2500 / Automatic - AA14-10.5

Thoroughbred Sku #: MAGAA14-10.5
Manufacturer Sku #: #AA 14-10.5



Product Details

Product Name: Mag-Hytec Differential Covers
Manufacturer: MAG-HYTEC
Manufacturer Part #: #AA 14-10.5
Thoroughbred Diesel Part #: MAGAA14-10.5
Fitment Notes: Mag-Hytec AA 14-10.5 Differential Cover - Dodge Rear 2003 to present 2500 / Automatic - #AA 14-10.5- Standard Diesel and Gas Trucks

Dodge Rear 2003 to present 2500 / Automatic
Capacity: 6 Quarts
Overall Height: 3 3/4"

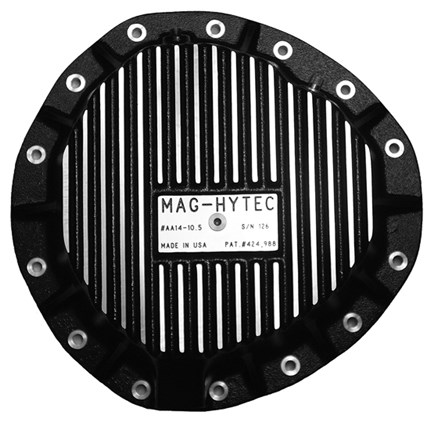

The Mag-Hytec AA 14-10.5 rear differential cover is cast in A356-T6 aluminum and texture powder coated black with contrasting machined cooling fins, the Mag-Hytec differential cover boasts increased fluid and cooling capacity, a magnetic dipstick for checking fluid level and checking metal particulate, a magnetic drain plug, a fluid level reference plug, as well as a temperature sender port in 1/8"NPT. All Dipstick, drain plugs and reference plugs are MS 33649 and fitted with ARP 568 O-rings for superior sealing. All fasteners are T-303 stainless steel. The cover seal is a dovetail groove mounted ARP 568 O-ring that requires no sealant or gasket. It can be removed and reinstalled several times without replacement.

Bolt Pattern has two top and bottom bolts @ 11:00 & 1:00 O'clock & 7:00 & 5:00 O'clock for quick identification.

OR #AA 14-11.5 Bolt Pattern has one top and one bottom bolt @ 12:00 O'clock & 6:00 O'clock for quick identification.

  • Magnetic drain plug and anodized aluminum dipstick with magnetic insert
  • O-rings require no gaskets or sealant
  • Routine lube maintenance without removing the differential cover
  • 1/8 NPT temperature sender port
  • 303 stainless steel hardware
  • Lube level reference plug
  • Finned aircraft aluminum housing
  • Requires allen key wrenches (included) for installation and service
  • Fits with most factory suspension systems and aftermarket anti-sway bars
  • All Mag-Hytec parts are covered by a lifetime limited warranty.
