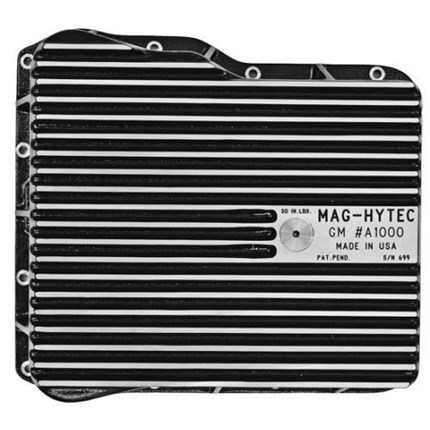

Mag-Hytec Transmission Pan - 01-14 GM 6.6L Duarmax (Allison 1000/2000/2400 Series Trans.) - #A1000

Thoroughbred Sku #: MAGA1000
Manufacturer Sku #: #A1000


+ Free Ground Shipping

Product Details

Product Name: Mag-Hytec Transmission Pan
Manufacturer: MAG-HYTEC
Manufacture Part #: #A1000
Thoroughbred Diesel Part #: MAGA1000
Fitment Notes: Mag-Hytec Allison A1000 Transmission Pan - 01-14 GM 6.6L Duarmax (Allison 1000/2000/2400 Series Trans.) - #A1000
Fits: 2001-2014 GM 6.6L Duarmax (Allison 1000/2000/2400 Series Trans.)
Capacity: 4.5 Quarts Over Stock
Overall Height: 5 1/2"

Allison Deep Sump Filter HAS TO BE purchased to use this product. (see links below)

The Mag-Hytec A1000 Allison transmission pan is cast in A356-T6 aluminum and texture powder coated black with contrasting machined cooling fins, the Mag-Hytec trans. pan boasts increased fluid and cooling capacity, a magnetic drain plug, as well as a temperature sender port in 1/8"NPT. The drain plugs and reference plugs are MS 33649 and fitted with ARP 568 O-rings for superior sealing. All fasteners are T-303 stainless steel. The pan seal is a dovetail groove mounted ARP 568 O-ring that requires no sealant or gasket. It can be removed and reinstalled several times without replacement.

The Mag-Hytec pan is constructed of high quality aircraft aluminum and has a powder-coated finish. The bolts are zinc plated allen head screws and the washers are stainless steel. These components require no maintenance.

  • Deep high-capacity sump for maximum cooling
  • Finned aircraft aluminum construction
  • Magnetic drain plug aids in trapping worn material promoting fluid integrity.
  • O-rings require no gaskets or sealant
  • 1/8"NPT temperature sender port
  • T-303 stainless steel hardware except allen head cap screws are zinc plated
  • Requires only three allen key wrenches (included) for installation and service
  • All Mag-Hytec parts are covered by a lifetime limited warranty.
