Fox Performance Series 2.0 Smooth Body Reservoir Shock - 2020-2023 GM Silverado/Sierra 2500HD/3500HD 2WD/4WD (Front) Lifted 0"-1"

Thoroughbred Sku #: FOX985-24-242
Manufacturer Sku #: 985-24-242

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


$309.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:Fox Performance Series 2.0 Smooth Body Reservoir Shock - 2020-2023 GM 2500HD/3500HD 2WD/4WD (Front) Lifted 0"-1"
Manufacturer: Fox Shocks
Manufacturer Part #: 985-24-242
Thoroughbred Diesel Part #: FOX985-24-242
Fitment Notes: 2020-2023 GM 2500HD/3500HD 2WD/4WD

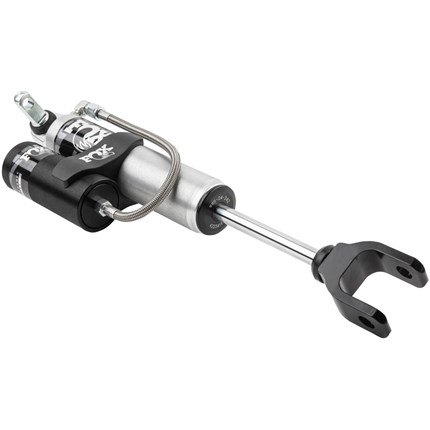

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

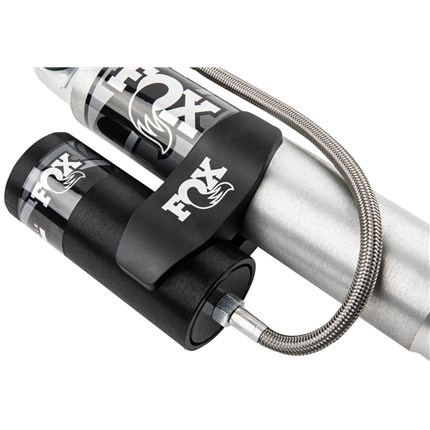

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Fox Shocks Features:

  • Enhanced Ride Quality

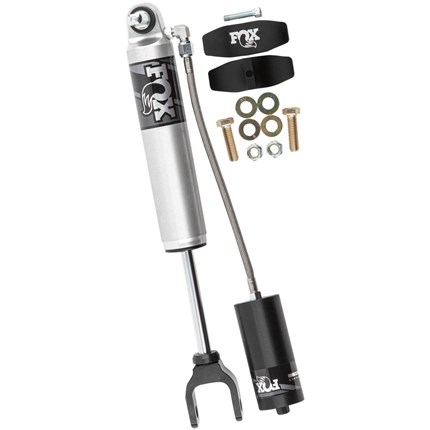

  • Easy-To-Mount Assembly
  • Application Specific Valving
  • For more information on Fox Shocks call us at 1-859-737-4966
Body 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating Clear-anodized for a durable finish
Reservoir 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings Quiet nitrile rubber allows for increased suspension articulation
Extended 18.140
Compressed 12.780
Travel 5.370

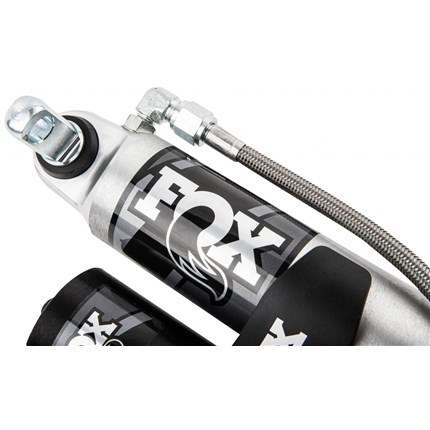

Top Mount Bar Pin

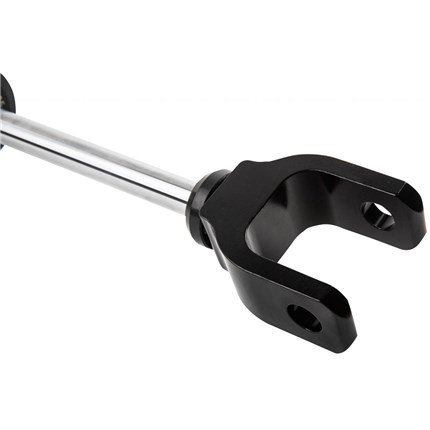

Bottom Mount Clevis
