Hot Seller

Edge GM Diesel Evolution CTS3 2001-2016 Duramax

Thoroughbred Sku #: EDG85400-200
Manufacturer Sku #: 85400-200

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Owners Manual - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm -




View All applications

Add a Edge EAS EGT Kit (Daily Driver/Tow Kit) - 98620?

Product Details

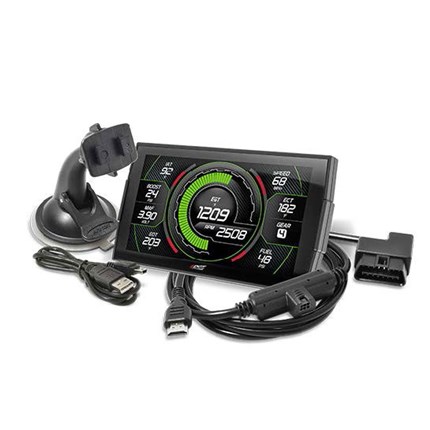

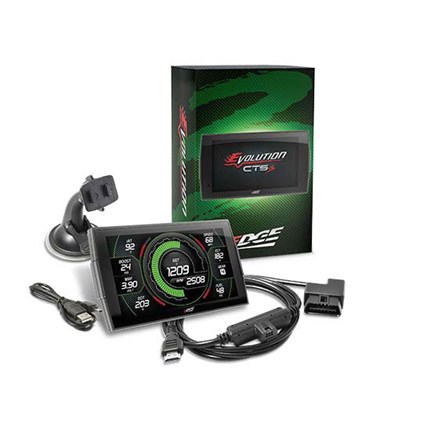

Product Name: Edge GM Diesel Evolution CTS3 2001-2016 GM Duramax
Manufacturer: Edge
Manufacturer Part #: 85400-200
Thoroughbred Diesel Part #: EDG85400-200
Fitment Notes: 2001-2016 GM Duramax, 2017-2019 GM gas Classic Body

Introducing the next generation Evolution CTS3: all-new, full-Color Touch Screen CTS3. The CTS3 will continue to include all of the great features, benefits, and extended coverage from the CTS2 product line, all while adding a sleek, new exterior and cutting-edge screen. The best look in the industry delivered via a revamped, slim case design and a 5” full-color capacitive edge-to-edge display with true swipe screen technology. Not only is the display sharper, but the higher resolution screen delivers a tremendous pixel ratio and top-notch graphics. New screen layouts, faster processing speeds, and WiFi update capability are just a few things that set the Evolution CTS3 apart from all other competitors.

Edge Evolution CTS3 Features:

  • Most comprehensive, state-of-the-art, multi-gauge/tuner touch-screen display on the market
  • 3rd Generation design is faster and more capable than ever
  • Power levels designed for daily driving, towing, performance and extreme
  • Up to an additional 180HP and 440 ft-lb TQ* on select Diesel Applications
  • Up to an additional 80HP and 90 ft-lb TQ* on Turbo Charged Gas Applications
  • Up to an additional 50HP and 50 ft-lb TQ* on Naturally Aspirated Gas Applications
  • Settings for tuning shift points, shift firmness, TQ management, fuel pressure and more*
  • Adjust Speed and Rev Limiters*
  • Correct Speedometer*
  • Simple installation - just plug into OBDII port. No wiring required
  • Monitor key vehicle parameters like trans temp, boost, RPM and dozens more

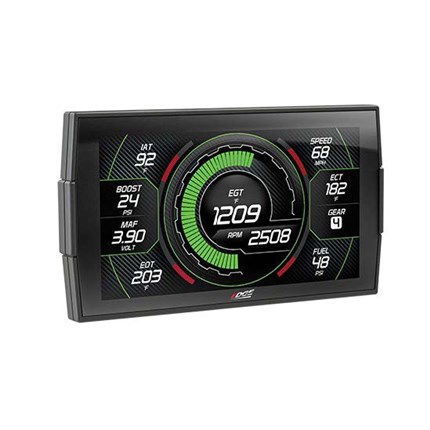

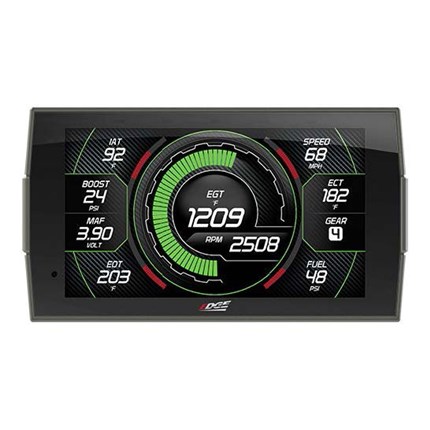

  • Full color, 5 inch capacitive touch screen with auto-dimming
  • Offers crystal clear data at your fingertips
  • Highly customizable gauges and backgrounds
  • Boots up directly to gauge screen upon key cycle
  • Swipe capability allows easy switching between screens as needed for towing, performance, economy, etc
  • Built-in performance meter measures 0-60, ¼ mile times and more
  • Advanced integrated data logger with export capability
  • Ability to add vehicle licenses to tune multiple vehicles with one product
  • Clear and Read DTC codes
  • Wi-Fi updateable
  • For more information on Edge call us at 1-859-737-4966.


The Third Generation is faster, slimmer, smoother, more advanced, and wi-fi update compatible. In addition to the new slim case design, we also upgraded to a 5" full-color capacitive touch screen display, making our gauges the sleekest in the industry. We didn't stop at making the display better; we added an all-new, high-speed, processor that provides easy swipe gestures and navigation throughout the product resulting in a user experience that is unmatched in the automotive aftermarket.
Choose between over 20 multiple custom gauge screens to monitor vital vehicle parameters. The new Modern CTS3 screen is Edge's all-new screen that allows you to monitor 10 parameters (PIDs) at once. Best of all, the multi-screen comes with a scrolling option and allows customers to swipe between multiple gauge screens at any given time.


This is the perfect tool for those who want to monitor their vehicle's performance and prefer not to program their vehicle, or for those who already have significant performance upgrades and want to safely monitor their vehicle's performance. Not only can the Insight monitor vehicle performance, but it can also be intelligently configured to provide audible and visual alerts to help you protect your vehicle.  Observe and understand your vehicle's parameters using Edge's state-of-the-art technology.  Our Insight CTS3 delivers unmatched monitoring capability for OBD II vehicles (1996 or newer).  This Insight CTS3 digital gauge display works well with custom tuning products or as a stand-alone monitor for total insight on how your vehicle is performing.


We have listened to your feedback about the custom settings on the CTS2 and given you more customization with the CTS3! Not only can you custom background, but the third generation also comes fully equipped with a custom theme settings where you can custom mix any color you want.  Apply your custom colors to gauge arcs, warnings, alerts, labels, or even color-tint your background!  Changing between backgrounds and accessing the Color Mixer is quick and easy with one swipe from the pull-down control center!


Exclusive Technology Not Available Anywhere Else!

Edge has raised the bar again with the innovative features in the CTS3 screen that are not found in similar monitors

  • Razor-thin display integrates into your cab seamlessly unlike other bulky monitors and busy gauge clusters.
  • 5 inch capacitive touch screen, the largest available on the market, clocks at a faster frame rate than competing monitors.
  • Proprietary one-touch navigation menu. Seamlessly swipe through data and check alerts with the most intuitive and improved user interface ever designed for a truck monitor
  • Update through new WiFi components while never disconnecting your screen from the truck
  • One HDMI cable to power the monitor and link your EAS accessories as opposed to multiple inputs and bulkier cables that come standard on other devices.
  • Day or night with Edge's built in light sensitivity meter your monitor will adjust the brightness giving you the ideal brightness while driving.

Take Performance to the Next Level!

Edge continues to make the Insight the best monitor for old needs.  Rather you are wanting more power and to monitor parameters on a stock truck, watch vital gauges when towing, keep an eye on a custom tuned truck, or just the most feature rich tuning/monitor product we can offer you on your vehicle, Edge is right for you.

  • Performance Tuner for Mileage, Towing, Daily Driving, and Performance
  • Log, graph, and export hundreds of parameter to track or improve performance
  • Test and track performance runs such as 0-60 mph, 0-100 mpg, 1/8 mile, and ¼ mile
  • Read and clear trouble codes (DTC's) and gain an assessment of potential maintenance issues before you take the truck in to the shop.

Customize it and Make it Your Own!

Everyone's needs are different.  Whether you are using your truck for work, pleasure, or competition - no other vehicle monitoring system gives you more customization options than Edge!

  • Display hundreds of different combinations of gauges in digital or analog format in Metric or US units
  • Set audible & visual alert notifications when certain parameters or temperatures are met
  • Adjust the background screen, gauge arcs, and needles to virtually any color
  • EAS (Expandable Accessory System) compatible. Add additional sensors, probes, SOTF, or switches and monitor them on the screen!
  • Add safety by installing a backup camera. The CTS3 contains a USB port and accommodates the simple install of Edge's Backup camera with a new USB connector.
  • Your factory speedometer is no longer accurate once you add larger tires. Easily fix this and reprogram your speedometer based on your tire size or display your true speed through your Monitor.
  • Ships with state-of-the-art suction cup and ability to work with Edge's custom mounting solutions for that factory installed look.
  • Internet updatable or WiFi to stay up with future feature releases never missing out on the next big thing.

Evolution CTS3 Coverage and Power Levels

Chevrolet/GMC 2001-2005 6.6L Duramax LB7 LLY
Level 0: Stock
Level 1: 30 HP - 60 Lb-ft TQ
Level 2: 50 HP - 90 Lb-ft TQ
Level 3: 70 HP - 150 Lb-ft TQ
Level 4: 100 HP - 210 Lb-ft TQ

Chevrolet/GMC 2006-2007 6.6L Duramax LLY LBZ
Level 0: Stock
Level 1: 30 HP - 60 Lb-ft TQ
Level 2: 60 HP - 135 Lb-ft TQ
Level 3: 85 HP - 185 Lb-ft TQ
Level 4: 100 HP - 220 Lb-ft TQ

Chevrolet/GMC 2007.5-2010 6.6L Duramax LMM
Level 0: Stock
Level 1: 30 HP - 57 Lb-ft TQ
Level 2: 50 HP - 90 Lb-ft TQ
Level 3: 75 HP - 150 Lb-ft TQ
Level 4: 85 HP - 200 Lb-ft TQ

Chevrolet/GMC 2011-2012 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 70 HP - 160 Lb-ft TQ
Level 3: 90 HP - 200 Lb-ft TQ

Chevrolet/GMC 2013-2015 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 75 HP - 180 Lb-ft TQ
Level 3: 135 HP - 240 Lb-ft TQ

Chevrolet/GMC 2016 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 75 HP - 180 Lb-ft TQ
Level 3: 115 HP - 220 Lb-ft TQ


  • Hello, what can this do for my %100 stock lml? And is this the best option for me, I'm after mpg when not towing, but when towing, more power....thanks

    Gordon | 12/7/2021

    Depending on model year up to 135hp and 240ft lb of torque. Mpg’s vary with driving style and vehicle condition, typically 1-3 mpg’s. the evolution is a good product.

  • How do these tunes vary or compare to the Duramax Tuner SOTF Spade for stock LBZ (DUTSOTFSPADE-LBZ) you offer?

    Joe | 6/24/2021

    No, SOTF option.

  • Would this work to delete the dpf

    Tim Handle | 1/16/2022

    No, Edge does not offer any delete tuning.

  • will it take care of the dead pedal, and does it leave a foot print?

    dwayne plambeck | 4/9/2021

    It should help with dead pedal. Yes it will leave a footprint.

  • Will this fit the Duramax 2.8L in the ZR2?

    David Sider | 12/5/2020


  • Reason doesn't fit cab and chassis. 3500 gmc

    Brett Saddington | 11/27/2020

    Site error.

  • Will this edge evolution cts3 fit on a 2092 Cummins?

    Teigan Myers | 9/20/2022

    If you meant a 2002 dodge, no it is for the 03 and up dodges.

  • why edge evolution ets3 does not show a setting for towing in the tune setting. which setting would be considered for towing.. There is economy, driverand extreme

    Glynn Prosperie | 2/1/2021

    What vehicle?
