Edge Evolution CS2 - CARB E.O./CALIFORNIA EDITION - 01-16 GM, 03-12 Dodge, 94-10 Ford - 85301

Thoroughbred Sku #: EDG85301
Manufacturer Sku #: 85301

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

$499.95

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Additional Specs
Youtube Videos
Reviews
Questions & Answers

Product Details

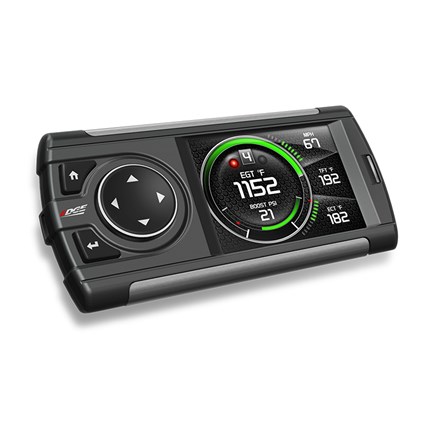

Product Name: Edge Evolution CS2 - CARB E.O./CALIFORNIA EDITION
Manufacturer: Edge
Manufacturer Part #: 85301
Thoroughbred Diesel Part #: EDG85301
Fitment Notes: Edge Evolution CS2 - CARB E.O./CALIFORNIA EDITION - 11-16 GM, 03-12 Dodge, 94-10 Ford

The Evolution CS2 programmer not only re-programs the vehicle to improve power and performance, but also doubles as a gauge-display device providing vital information about the performance of the newly tuned vehicle and can also act as scan tools for reading and clearing trouble codes.

The CS2 connects directly into the vehicle s computer via the OBDII port and can read and display up to 8 parameters at a time from a list of dozens of engine parameters! The CS2 display can be easily changed and configured to allow each user to view the data most important to them. Safety features with user-defined audible alerts as well as performance test features such as 0-60 and quarter mile times are included, along with light sensitivity meters that automatically adjust screen brightness for improved viewing for both day and night driving.

The CS2 model features a full-color high resolution 2.4- inch, button-controlled screen and is designed to work in conjunction with the Edge Accessory System (EAS) which allows users to connect multiple future accessories to the product such as additional exhaust gas temperature (EGT) sensors with many more accessories!

Other Features:

Analog and digital gauge display
Includes light sensitivity meter to dim screen as ambient light decreases
Mileage coach software
Maintenance manager software
Performance tools (0-60, 1/4 mile, HP and TQ numbers)
Data logging
MyStyle software
EAS compatiable
Alerts and records
Display US or metric units of measure
Ships with a universal suction cup mount
Compatible with all Edge custom dash pods with pod adaptor (sold separately)
Internet updateable
Easy installation

MILEAGE COACH NOW AVAILABLE FOR THE CS2 AND CTS2 PRODUCTS

Mileage Coach was designed with fuel economy in mind! The all-new features help drivers gauge, monitor, and conserve fuel. Now with the CS2 and CTS2, you can easily see your driving habits with the brand new Mileage Coach screen.

How does it work? When your driving pattern is ideal you ll notice green leaves appear on the Mileage Coach screen and your indicator bar will shift to the green side of the gauge, representing GOOD A heavy foot, steep incline, or anything leading to less than ideal fuel mileage will shift the indicator to the red side of the screen meaning POOR. You ll also notice the leaves turning red when your fuel economy falls below your calculated average MPG. The screen images change colors and indicator bar moves on the screen to simply give a visual on your current driving and lets you know when you need to improve to be more efficient.

Features Include:

New Mileage Coach Screen Layout
Mileage Parameters to monitor
Trip Monitor (Monitors fuel cost on trips)
MPG Calculator
Fuel Saving Driving Tips including: Idling, Weather, Cruise Control, Cargo/Towing, Excessive Speed, ETC.

CS2 Key Features:

Slim, Sleek Case Design
2.4" Full-Color, High Resolution, Button-Control Screen
Custom Color Mixer for Gauge Arcs, Needles and Backgrounds
Multiple Gauge Screen Layouts
Fully Customizable Backgrounds
HDMI Style Plug for Power and linking EAS Accessories
Easy Menu Navigation
Notification Center

Edge Evolution CS2 Features:

CARB EO#: D-541-7, D-541-8, D-541-10, D-541-12
Performance tuner for mileage, towing, daily driving, and performance
Adjust speed and rev limiters*
Correct speedometer*

*Some features may vary by make/model/year.

PERFORMANCE GAINS

2008-2010 Ford 6.4L Powerstroke

Power Level 1: 25 HP & 55 lb-ft
Power Level 2: 40 HP & 75 lb-ft
Power Level 3: 60 HP & 130 lb-ft
Power Level 4: 88 HP & 134 lb-ft

Parameters Monitored: Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, EGT, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Regeneration Status, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost ¾

2003-2004 Dodge 5.9L Cummins

Power Level 1: 70 HP & 165 lb-ft
Power Level 2: 95 HP & 220 lb-ft
Power Level 3: 120 HP & 270 lb-ft

Parameters Monitored: Accel Pedal Position, Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

2005-2007 Dodge 5.9L Cummins

Power Level 1: 80 HP & 185 lb-ft
Power Level 2: 115 HP & 250 lb-ft
Power Level 3: 130 HP & 270 lb-ft

Parameters Monitored: Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

2007.5-2009 Dodge 6.7L Cummins

Power Level 1: 35 HP & 130 lb-ft
Power Level 2: 60 HP & 180 lb-ft
Power Level 3: 85 HP & 235 lb-ft
Power Level 4: 115 HP & 240 lb-ft

Parameters Monitored: Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, DPF Pressure, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Mileage Coach, MPG Instant, MPG Average, Post DOC EGT, Post DPF EGT, Post x EGT, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed ¾

2010-2012 Dodge 6.7L Cummins

Power Level 1: 45 HP & 145 lb-ft
Power Level 2: 70 HP & 190 lb-ft
Power Level 3: 95 HP & 240 lb-ft

Power Level 1: 30 HP & +60 lb-ft
Power Level 2: 50 HP & 60 lb-ft
Power Level 3: 70 HP & 150 lb-ft
Power Level 4: 100 HP & 210 lb-ft

Parameters Monitored:Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate 02+, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure 03+, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Time 0-60, Time 1/4 mile, Trans Temp(04 and up), Turbo Boost, Vehicle Speed

2006-2007 GM 6.6L Duramax LBZ

Power Level 1: 30 HP & 60 lb-ft
Power Level 2: 60 HP & 135 lb-ft
Power Level 3: 85 HP & 185 lb-ft
Power Level 4: 100 HP & 220 lb-ft

Parameters Monitored: Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Fuel Rail Pressure, ,Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed

2007-2010 GM 6.6L Duramax LMM

Power Level 1: 30 HP & 57 lb-ft
Power Level 2: 50 HP & 90 lb-ft
Power Level 3: 75 HP & 150 lb-ft
Power Level 4: 130 HP & 220 lb-ft

Parameters Monitored: Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, DPF Pressure Variance, DPF Soot Mass, EGT Post DPF, EGT Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Engine Run Time, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed ¾

Results and feature set may vary based on vehicle make, model, and aftermarket upgrades.

Reviews

Submit a question

My truck had a tune on it already and I didn’t know until I bought a edge evolution for my 2000 Ford F-350 7.3 is there any way of still tuning my truck with your tuner?

Jose Daniel | 8/12/2019
It will recover and overwrite the tune that is installed.
I'm new to CTS2, bought a diesel 250 Super duty and no info on the CTS2. What do all the initials stand for on the screen. Such as EDT, ECO and such.

Jerry Walters | 4/27/2022
Those are your gauge setup’s , what parameters you choose to monitor.
Can I delete def with this programmer

Calvin | 1/20/2021
No, edge does not offer any emissions removal tuning.
Can I delete egr with cts2

Cal | 1/19/2021
No, Edge products do not support emission removal.
Does the cts2 show your exhaust gas temp on my 2014 gmc duramax?

Mike smith | 6/26/2019
You will have to purchase the EGT probe kit https://www.thoroughbreddiesel.com/98620/
I have edge cs programmer for dodge 98 diesel for 6 years I took my truck to smoke shop after tha inspection the cheap is no working sometimes work sometimes not so the cheap can be fix or reset or is time buy other one the cheap said needs technical support

Raul Villegas | 6/4/2019
You could try an update on it to see if that resolves any problems you are having, double check wiring and just basically go back over your installation. If that doesn’t fix it, reach out to Edge for support.
