Mag-Hytec 727-D Transmission Pan - 89-07 Dodge 5.9L Cummins with 727/518/47RE/47RH/48RE - #727-D

727-D Transmission Pan
Fits: 1989-2007 Dodge 5.9L Cummins with 727 /518 / 47RE / 47RH / 48RE
Capacity: 1 1/2 quarts more fluid than stock pan
Overall Height: 3 7/8"

Comes with LIFETIME limited warranty!

All 727 Transmission bodies.
(36RH, 37RH - 1966 to 1989)
(46RH, 47RH - 1989 to 1995) also called the A-518
(46RE, 47RE - 1996 to 2001)
(48RE - 2002 to 2007 5.9L) not for 6.7L

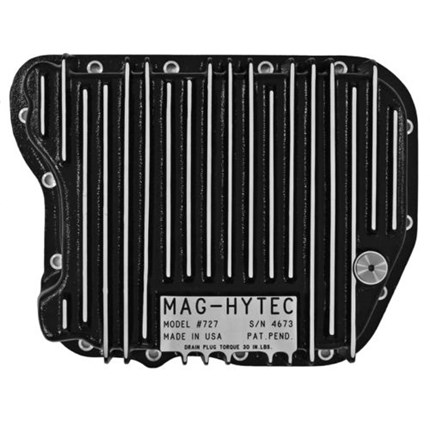

The Mag-Hytec 727-D transmission pan is cast in A356-T6 aluminum and texture powder coated black with contrasting machined cooling fins, the Mag-Hytec trans. pan boasts increased fluid and cooling capacity, a magnetic drain plug, as well as a temperature sender port in 1/8"NPT. The drain plugs and reference plugs are MS 33649 and fitted with ARP 568 O-rings for superior sealing. All fasteners are T-303 stainless steel.

• Deep high-capacity sump for maximum cooling
• Magnetic drain plug
• 303 hardware except allen head cap screws are zinc plated
• 1/8 NPT temperature sender port
• Finned aircraft aluminum construction
• Requires only three allen key wrenches (included) for installation and service
• Holds 1 1/2 quarts more fluid than stock pan
