Mag-Hytec DANA #60 (Dodge Front) Differential Cover - Front Axle - 2002 Dodge 5.9L Cummins w/Vented Cover

Thoroughbred Sku #: MAG60-DFVENTED
Manufacturer Sku #: #60-DFVENTED

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:


$341.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
mag-hytec

View More Products From

Mag-Hytec

Product Details

Product Name: Mag-Hytec DANA #60 (Dodge Front) Differential Cover - Front Axle - 2002 Dodge 5.9L Cummins w/Vented Cover
Manufacturer: Mag-Hytec
Manufacturer Part #: 60-DFVented
Thoroughbred Diesel Part #: MAG60-DFVented
Fitment Notes: 2002 Dodge 5.9L Cummins
  • Note: 2002 Models need to check for Vent tube on face of cover. Truck owners with non vented differential cover please select 60-DF
Mag-Hytec's heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working diesel trucks like yours. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function cast in A356-T6 aluminum and texture powder coated black with machined cooling fins.

Magnetic drain plugs trap worn gear material promoting fluid integrity. As the metallic components in transmissions and axles wear, they generate very fine particle debris that becomes suspended in the lubricating oil. A suspended magnet acts as a filter to contain these particles, keeping the fluid cleaner and extending component life. Periodic checking and cleaning of the magnet is recommended for maximum fluid service life.

The Mag-Hytec cover is designed to fit the factory Dana axles as supplied as original equipment. However, in some applications, or because of the use of certain factory options and/or after market equipment, there may be
clearance problems between your Mag-Hytec cover and other vehicle systems (The tie rod end on the Drivers side has to be dropped down to install the Mag-Hytec cover). It is the responsibility of the vehicle owner/cover
installer to ensure that no other vehicle component comes in contact with the Mag-Hytec cover. Contact with any vehicle component, or the making of any modification to the Mag-Hytec cover, automatically voids the warranty

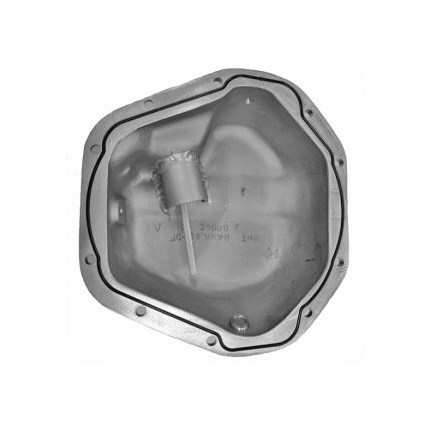

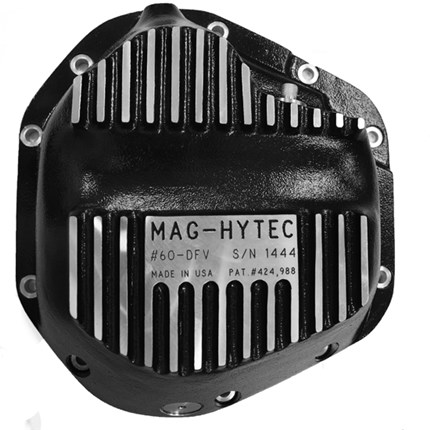

Mag-Hytec DANA #60-DF Vented (Dodge Front) Differential Cover

  • Overall height 3 5/8"
  • Dodge Front '02 2500 & 3500 Models
  • If you have a Vented cover this is the correct cover. Truck owners with non vented differential cover please select 60-DF
  • Capacity: 4 1/2 Quarts.
  • Includes: Bolt kit, Drain Plug and Dip Stick.

Reviews

Submit a question

  • Will this cover with a 4th Gen Steering Upgrade? I have the tie rod and drag link update from the Newer Dodges, just wanna be sure it won’t rub against the cover, Thankyou

    Juan Ramirez Antolin | 6/28/2022

    Overall height is 3 5/8”. Measure to clearance to confirm fitment.
