Mag-Hytec DANA #60 (Dodge Front) Differential Cover - Front Axle - 89-02 Dodge 5.9L Cummins - 60-DF

Thoroughbred Sku #: MAG60-DF
Manufacturer Sku #: #60-DF

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

$341.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966

Product Details

Product Name: Mag-Hytec Differential Covers
Manufacturer: MAG-HYTEC
Manufacturer Part #: #60-DF
Thoroughbred Diesel Part #: MAG60-DF
Fitment Notes: Mag-Hytec DANA #60 (Dodge Front) Differential Cover - Front Axle - 89-02 Dodge 5.9L Cummins - #60-DF

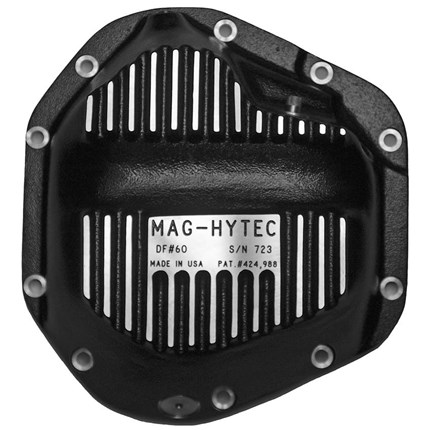

DANA #60 (Dodge Front) Differential Cover - Front Axle
Fits: 1989-2002 Dodge 5.9L Cummins
Capacity: 4 1/2 Quarts
Overall Height: 3 5/8" (2002 Models with vent tube: Order #60-DF Vented)

NOTE: Installation of the cover is just a bit more involved than for the other Mag-Hytec covers. You need to pop the drivers side tie rod end loose from the steering knuckle to give clearance between the ring gear and the steering rod. Mag-Hytec - DANA 60 Front Differential Cover.

  • Note: 2002 Models need to check for Vent tube on face of cover. Truck owners with vented differential cover please select 60-DFVented


Mag-Hytec's heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working diesel trucks like yours. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function cast in A356-T6 aluminum and texture powder coated black with machined cooling fins.

Magnetic drain plugs trap worn gear material promoting fluid integrity. As the metallic components in transmissions and axles wear, they generate very fine particle debris that becomes suspended in the lubricating oil. A suspended magnet acts as a filter to contain these particles, keeping the fluid cleaner and extending component life. Periodic checking and cleaning of the magnet is recommended for maximum fluid service life.

Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, and in most applications no gasket or sealant is required. All Mag-Hytec parts are covered by a lifetime limited warranty. Depend on MAG-HYTEC when you're pulling a heavy load.

  • Magnetic drain plug and anodized aluminum dipstick with magnetic insert
  • O-rings require no gaskets or sealant
  • Routine lube maintenance without removing the differential cover
  • 1/8 NPT temperature sender port
  • 303 stainless steel hardware
  • Lube level reference plug
  • Finned aircraft aluminum housing
  • Requires allen key wrenches (included) for installation and service
  • Fits with most factory suspension systems and aftermarket anti-sway bars

Reviews

Submit a question

  • Will this cover with a 4th Gen Steering Upgrade? I have the tie rod and drag link update from the Newer Dodges, just wanna be sure it won’t rub against the cover, Thankyou

    Juan Ramirez Antolin | 6/28/2022

    Overall height is 3 5/8”. Measure to clearance to confirm fitment.
