ATS 68RFE Billet Pump Plate 2007.5-2022 Dodge Cummins 6.7L

Thoroughbred Sku #: ATS3141902326
Manufacturer Sku #: 314-190-2326

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$450.00

free-shipping-no-handling
Plate Only

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

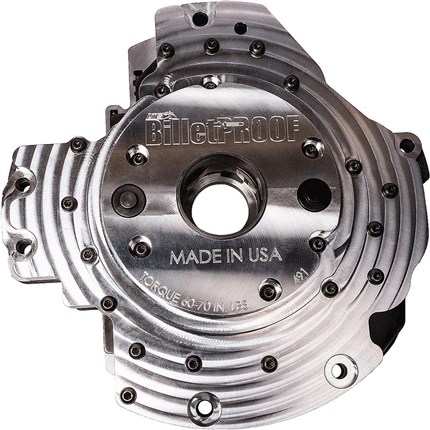

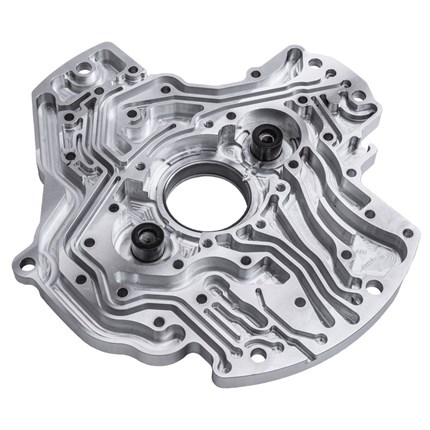

Product Name: ATS 68RFE Billet Pump Plate 2007.5-2022 Dodge Cummins 6.7L
Manufacturer: ATS
Manufacturer Part #: 3141902326
Thoroughbred Diesel Part #: ATS3141902326
Fitment Notes: 2007.5-2022 Dodge Cummins 6.7L
Warranty Information: 5-Year/500,000 Mile Limited Warranty

The factory 68-RFE pump housing is not large enough to supply the transmission with the required oil volume that it needs to keep pressure high at low engine RPMs. This causes the 68-RFE transmission to run low on oil pressure while causing or pulling heavy loads in 4th, 5th and 6th gears. The low oil volume and pressure causes the over drive clutches to slip causing 5th and 6th gear failure. The other issue with the factory pump is the cast material that used is weak and unstable. The inexpensive cast material warps over time causing hydraulic cross leaks between the pump half and the steel separator plate. These cross leaks cause many issues that end in transmission failure.

Some of these issues are transmission over heating, converter clutch apply when the vehicle is stopped, Rationality codes, cooler flow loss, delayed engagement to name a few. ATS has redesigned the 68-RFE pump to eliminate all of these issues and it’s manufactured out of billet tool grade Aluminum. The tolerances are controlled to provide maximum oil pressure and volume. The tight tolerances guarantee our billet pump will provide 100% of the pressure that the TCM is requesting during low engine RPM operation ensuring the clutch packs have adequate pressure to keep them clamped even in the worse conditions such as hot operation and low engine RPM while pulling extreme loads.

The heart of the 68-RFE transmission is the pump, installing the ATS BilletProof 68-RFE Billet Pump is one of the key elements to having a reliable 68-RFE transmission.

NOTE: This is the billet pump housing only. This part is intended to be used with the factory pump gears and idler pins. We offer the complete pump assembly, separator plate and pump gears as a different part number

ATS 68RFE Billet Pump Plate Features:

  • Billet Aluminum Construction
  • Provides 100% Pressure at Low RPMs
  • Made In The USA
  • For more information on ATS call us at 1-859-737-4966
