ATS E4OD Stage 4 Package 1995-98 Ford 2WD ATS Diesel

Thoroughbred Sku #: ATS3099423176-CRE

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$6,450.33

+ $700.00 Shipping

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

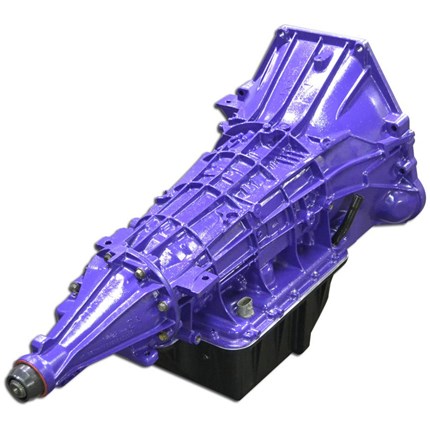

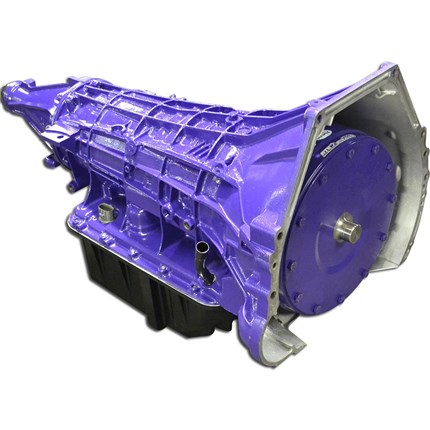

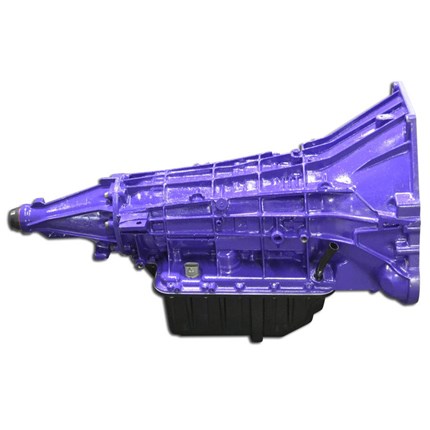

Product Name ATS E4OD Stage 4 Package 1995-1998 Ford 2WD ATS Diesel
Manufacturer ATS
Manufacturer Part # 3099423176
Thoroughbred Diesel Part # ATS3099423176
Fitment Notes 1995-1998 Ford 2WD

The Ford E4OD transmission was designed to fit behind various powerplants, including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability.

The Stage 4 package includes a billet input shaft for increased reliability when towing heavy loads, under modified power levels or street performance. The billet input shaft is designed to withstand greater torsional loads than the factory shaft, thus increasing reliability. The shaft is made of billet 300M material and precisely machined for an exact fit.

In addition, we add a lock-up controller for the torque converter on the Stage 4 setup. This allows the user to base lock-up on vehicle speed in any forward gear. This provides several benefits, including increased fuel economy, lower transmission operating temperatures and more power to the ground, at a lower speed. This feature becomes useful in towing situations and performance applications, where power at low rpm is desired. For those trucks with an exhaust brake, the controller will synchronize torque converter lock-up with the brake. This will allow the converter to stay locked on deceleration to increase braking force.

The Stage 4 features the addition of a billet flex plate. The billet flex plate is designed for high horsepower/torque trucks and those that tow heavy. The flex plate is the first point of power transfer from the motor to the transmission assembly. By using a billet steel flex plate, we can increase the reliability of power transfer from the crank to the converter.

The ATS Stage 4 Package is designed for trucks that are used for light/moderate/heavy towing, greater-than-stock power levels and racing/street performance.

ATS E4OD Transmission Features

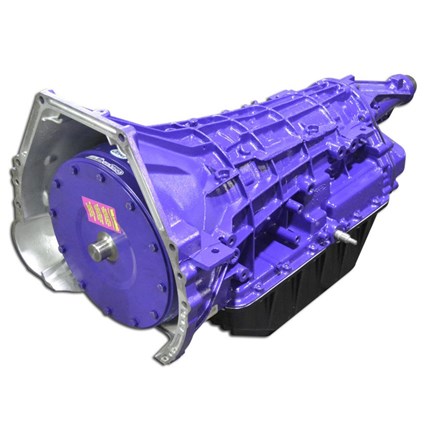

  • ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
  • ATS billet input shaft
  • ATS Commander Lock-Up Controller
  • ATS billet flex plate
  • High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
  • Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
  • Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
  • New bearings, seals and gaskets
  • New low roller clutch, heavy Duty intermediate sprag, bonded coast and overdrive pistons

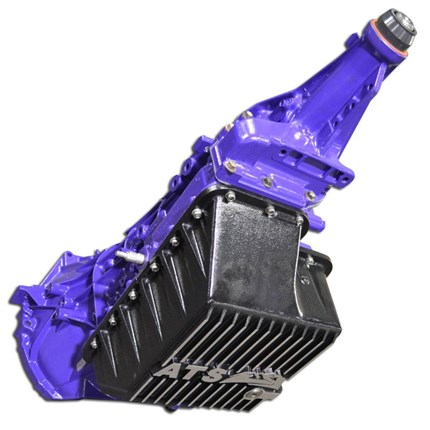

  • ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool
  • 5 year/500,000 mile warranty
  • For more information on ATS call us at 1-859-737-4966..

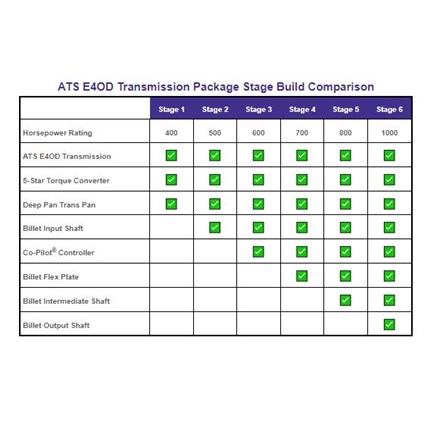

ATS E4OD Transmission Package Stage Build Compariso

  Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6
Horsepower Rating 400 500 600 700 800 1000
ATS E4OD Transmission
5-Star Torque Converter
Deep Pan Trans Pan
Billet Input Shaft
Co-Pilot® Controller
Billet Flex Plate
Billet Intermediate Shaft
Billet Output Shaft
