ATS Towing Valve Body - Dodge Late 1998-Early 1999 ATS Diesel

Thoroughbred Sku #: ATS3039022218-CRE

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$685.13

free-shipping-no-handling

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

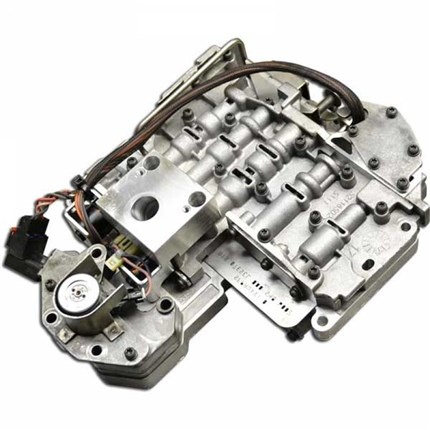

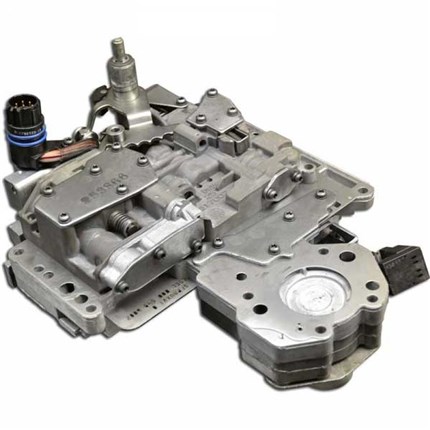

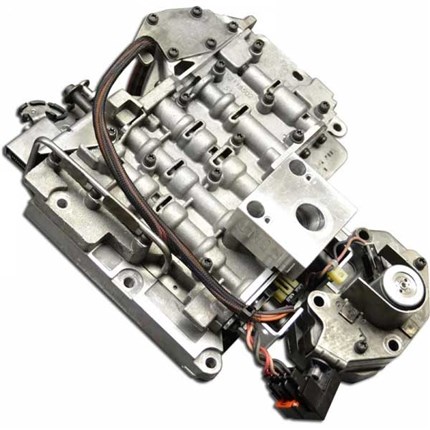

Product Name: ATS Towing Valve Body - Dodge Late 1998-Early 1999 ATS Diesel
Manufacturer: ATS
Manufacturer Part #: 3039022218
Thoroughbred Diesel Part #: ATS3039022218
Fitment Notes: Late 1998-Early 1999 Dodge Cummins
Warranty Information: 1-Year/12,000 Mile Limited Warranty

The throttle Valves (TV Valve) in a transmission's valve body control shift timing between gears through the constriction of hydraulic fluid. The TV valve also controls the line pressure required to clamp the clutch pack and band inside the transmission. Until now these valves have been known to have issues sticking inside the bore in the valve body, or wearing out due to friction, which causes malfunction and improper shifts.

Despite all of the changes made in the past to the material from which the valve is made, the bore itself in the valve will wear and prevent proper movement of the valve. Especially in the Dodge automatic Transmission, Dodge manufactures the stock valve body from a very cheap mystery material that is very soft and prone to wearing out.

ATS has designed an innovative solution in our Dodge Ram transmissions using a unique Hydro-balanced Valve and Sleeve. By altering both the shape and material of the valve itself, as well as placing a hardened sleeve in the valve body's bore the sticking issues are prevented. The valves in the ATS Valve Body perform extremely smoothly and operate as intended after extended use.

Utilizing this new design valve and sleeve assembly allows the hydraulic flow to be altered providing a more aggressive line pressure slope while providing quality shifts and Torque converter clutch engagement. When using the stock TV valve or oversized TV valves increased line pressure caused hard and abrupt shifts. The concept used by ATS is similar to that of a piston sleeve in an engine.

By using high quality, hardened material, the lifespan of the moving component is greatly increased and the issue of a worn bore is eliminated. This technique further raises the functionality and quality level of the ATS Valve Body and Transmission system to an even higher level and is used in our Towing, Racing, and Stand-Alone-Programmable Valve Bodies.

ATS Towing Valve Body Features:

  • Valve Body Towing Edition Dodge Late 1998-Early 1999
  • Protrietary design modifications
  • Improved shift characteristics
  • Increased reliability
  • Engine Manufacturer: Cummins
  • Make: Dodge Diesel
  • Models: 2500/3500
  • Fuel Type: Diesel
  • Transmission Type: Automatic
  • Sold As: Kit
  • For more information on ATS call us at 1-859-737-4966
