ARP
250-6302

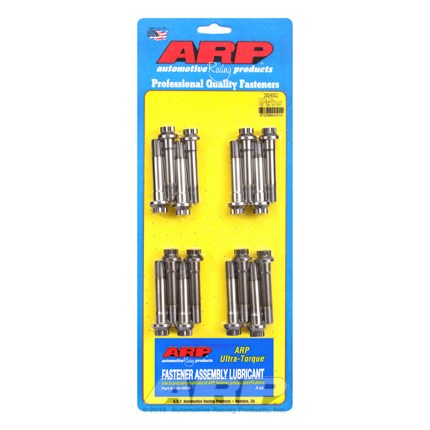

ARP Rod Bolt Kit - 99-03 Ford Powerstroke 7.3L - 250-6302

Thoroughbred Sku #: ARP250-6302
Manufacturer Sku #: 250-6302

$210.00

+ Free Ground Shipping

Product Details

Product Name: ARP Rod Bolt Kit
Manufacturer: ARP
Manufacture Part #: 250-6302
Thoroughbred Diesel Part #: ARP250-6302
Fitment Notes: ARP Rod Bolt Kit - 99-03 Ford Powerstroke 7.3L - 250-6302

Material: ARP2000

Pro Series Wave Loc Bolts
For the most severe applications, in conjunction with aftermarket I-beam rods, ARP has developed the "Pro" Series Wave-Loc bolts. These ultra heavy-duty rod bolts are made from a special material designated ARP2000. It has approximately 200% the fatigue life of 8740 chrome moly steel and has a tensile strength of about 220,000 psi, and is capable of more than 12,000 lbs. clamping force.

TECH NOTE: ROD BOLTS
Unquestionably the most important fasteners in any engine are the connecting rod bolts, as they hold the key to the entire rotating assembly. A broken bolt will lead to a catastrophic engine failure. As you can imagine, the most critical joint is where the connecting rod halves mate. The rod bolts must support the primary tension loads caused by each rotation (or cycle) of the crankshaft. When the crank rotates, the big end of the connecting rod essentially becomes oval-shaped and the rod bolts bend. As the crankshaft continues to rotate, the rod becomes round again. With alternating tension loads and cyclic bending of the bolts, it is very important to install fasteners that are able to exert a clamping force greater than the load imposed upon the join (tension).

In addition to utilizing a rod bolt with sufficient strength to withstand the tremendous cyclical strains placed upon it, it is absolutely imperative that the bolts be properly tightened. The preferred method of monitoring the correct amount of tension is through use of a stretch gauge. This is far more accurate than using a torque wrench. Moreover, through subsequently checking the rod bolts length at teardowns, it is possible to determine if it has been stressed beyond safe limits and must be replaced.

  • Wave-Loc surface contacts the rod and cap for optimum alignment and reduction of fluctuating stress - which strengthens the rod itself!
  • Provides snug fit for all OEM connecting rods (interference range of .001" to .005"), despite wide range of factory rod bolt hole tolerances.
  • Superior material grain flow because of patented Wave-Loc surface design as compared to knurled bolts that have sharp edges and "built-in" stress risers.
  • Galling and scoring of the rod is virtually eliminated because there is only smooth contact and absolutely no "digging."
