HP10151
pacbrake

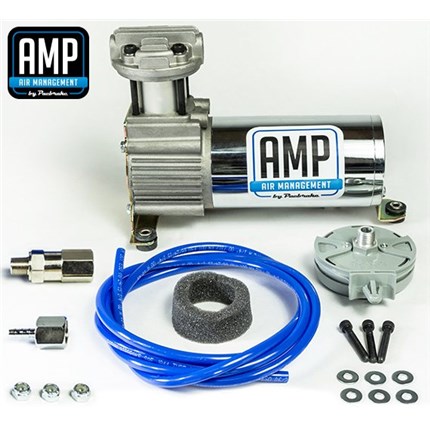

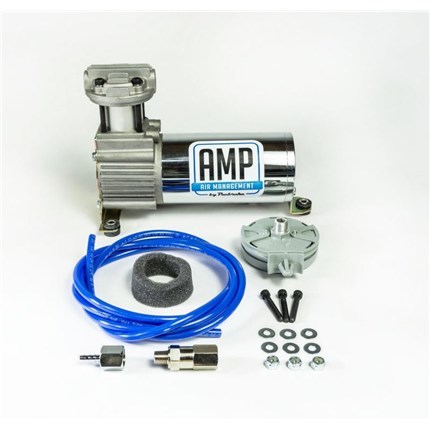

Pacbrake 24V HP325 Series Basic Air Compressor Air Compressor and Required Hardware Only

Thoroughbred Sku #: PACHP10151
Manufacturer Sku #: HP10151


$236.48

free-shipping-no-handling
VERIFY VEHICLE FIT

Product Details

Product Name: Pacbrake Air Compressors
Manufacturer: Pacbrake
Manufacturer Part #: HP10151
Thoroughbred Diesel Part #: PACHP10151
Fitment Notes: Pacbrake 24V HP325 AMP Air Compressor Kit - Universal - HP10151

These 1/4 horsepower compressors have an oil-less design, sealed bearings, PTFE piston ring, copper wire wound permanent magnet motor, a hard anodized aluminum sleeve, and are equipped with a check valve to prevent possible motor damage. Mountable in any orientation.

  • 1/4 Horsepower
  • 33% Duty Cycle
  • 12-Volt & 24-Volt
  • Vertical Pump Head Configuration
  • 150 PSI Max Working Pressure, 1.2 CFM
  • 158F Max / -40F Min Ambient Temperature
  • 8.7" x 4" x 6.2", 5.5 lbs


Reviews

  • What is the vacuum side to add ac fluid

    David Ayers | 6/30/2025

    This is an air compressor, for exhaust brakes and air bags.

  • I have the Pac Brake for a 2004.5 Dodge Ram Diesel 5.9L. My compressor Part #27525 #P03103 107 went out and I would like to replace it. I also need the 4 rubber graments also. Any and all help would greatly appreciated. Thank You, William Strmiska

    William Strmiska | 1/30/2021

    PACHP10142 will work kit will include all mounting items.

  • Where is the typical installation location?

    Charles | 11/28/2020

    Depends on the vehicle, typically passenger side fender well.

  • What is the amp draw at start up and running at full rated pressure?

    Jerry Street | 2/20/2020

    Draws 18 AMPs maximum

HP10151, PACHP10151, PBHP10151
