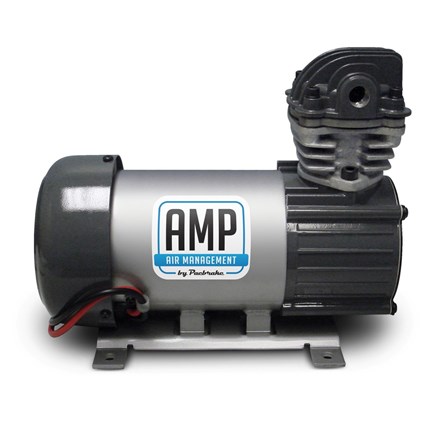

Pacbrake 24V Air Compressor W/Vertical Pump Head HP625 Series Pacbrake

Product Name: Pacbrake 24V HP625 Series AMP Air Compressor Kit (Vertical) - Universal - HP10625V-24
Manufacturer: Pacbrake
Manufacturer Part #: HP10625V-24
Thoroughbred Diesel Part #: PACHP10625V-24

Overview

24V HP625 Series Air Compressor is a heavy duty compressor with vertical pump head configuration

Product Description

24V HP625 Series Air Compressor is a heavy duty compressor with vertical pump head configuration. The HP625 series Pacbrake compressors requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Pacbrake's 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

• 24V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs.

Note: The HP625 series Pacbrake compressors i.e Part Number HP10625V-24V requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Details:

• Vertical Pump Head
• Finish Anodized
• Series HP625 Series
• 24 Volt

Application Notes

• 24VDC

Pacbrake Features:

• Vertical pump head configuration
• Pacbrake's heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower.
• A copper wire wound permanent magnet motor.
• Oil-less design with sealed bearings.
• Compressor Size: (LxWxH) 11.5" x 6" x 9.5" [293 mm x 153 mm x 242 mm]
• Compressor Weight: 18.5 lbs [8.4 kg]
