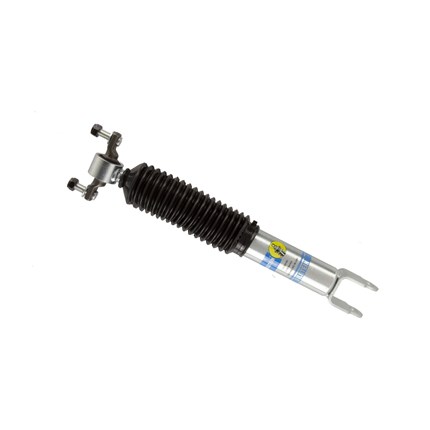

Bilstein 5100 Series 46mm Monotube Shock Absorber (Front) Lifted 0"-1.5" - 2011-2023 GM Silverado/Sierra 2500/3500HD

Bilstein 5100 Series 46mm Monotube Shock Absorber
Fits: 11-16 Chevrolet Silverado 2500/3500HD, 11-16 GMC Sierra 2500/3500HD

Collapsed Length (IN): 14.06
Extended Length (IN): 18.64
Collapsed Length (MM): 357.0
Extended Length (MM): 473.5
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Snap Ring Grooved Body (Coilover)

Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating)

Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet

• Finish: Zinc Plated
