Anvil Off-Road 17011AOR 12V Winch With Synthetic Rope

Thoroughbred Sku #: ANV17011AOR
Manufacturer Sku #: 17011AOR

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$819.95

free-shipping-no-handling
Universal - 17,000LB Capacity

Product Details

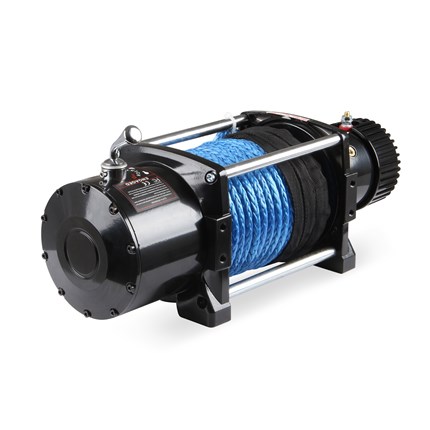

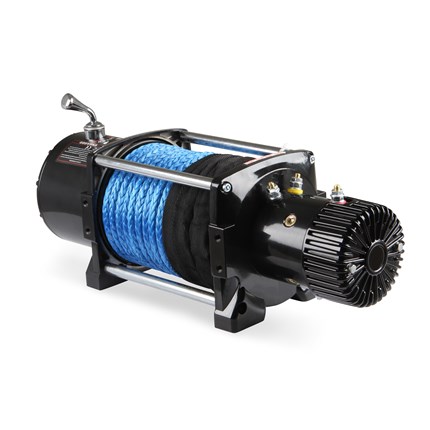

Product Name: Anvil Off-Road 17011AOR 12V Winch With Synthetic Rope
Manufacturer: Anvil
Manufacturer Part #: 17011AOR
Thoroughbred Diesel Part #: ANV17011AOR

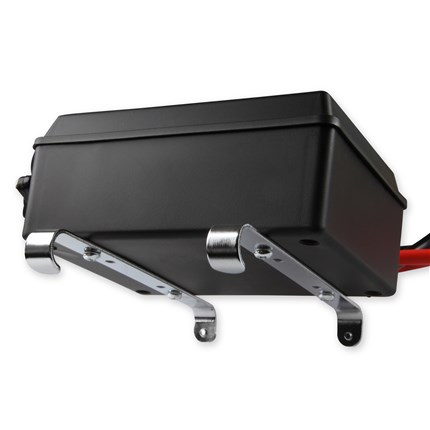

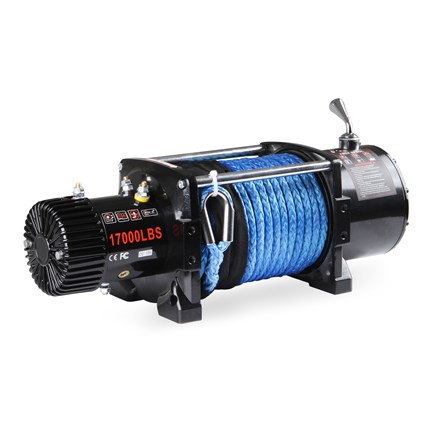

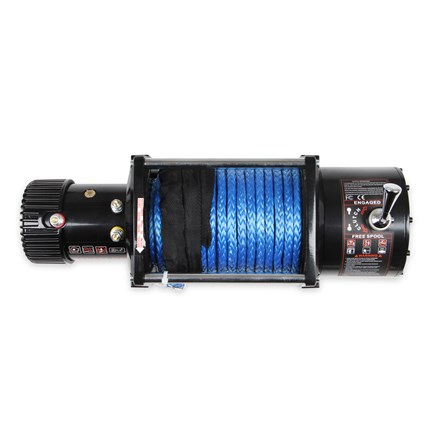

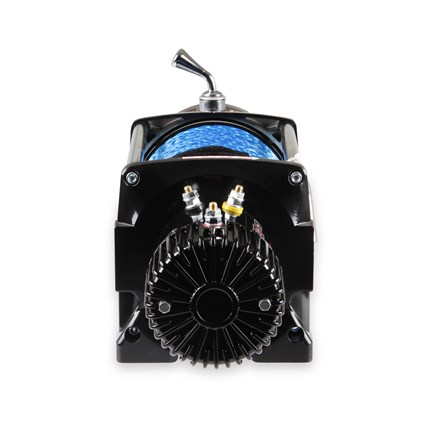

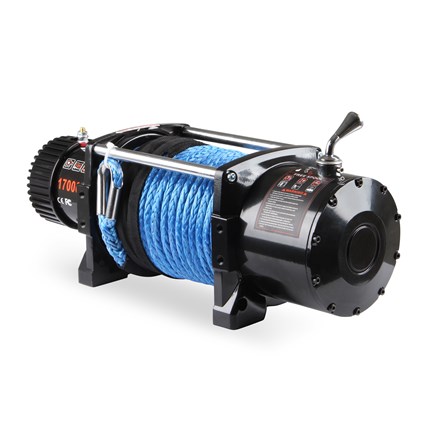

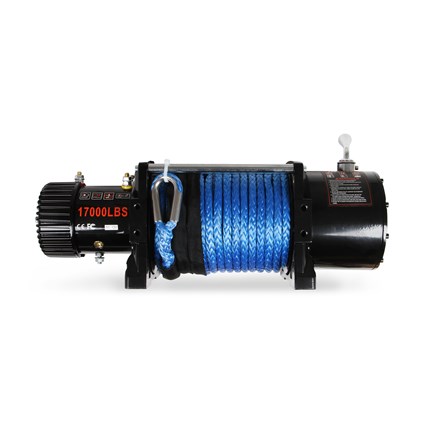

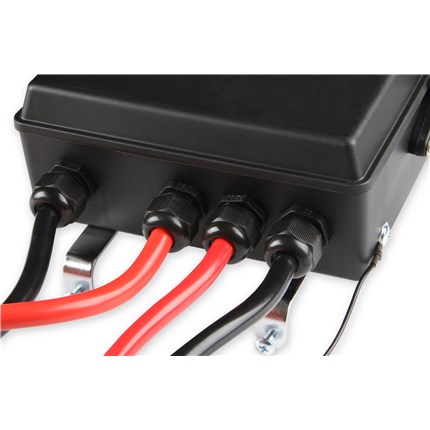

Anvil heavy duty electric winch features a 7.0 HP 12-volt motor & 3-stage planetary gear for 17,000 lbs. of pulling capacity (single line). This winch comes with a synthetic rope and aluminum fairlead. The wireless remote control is really handy when loading a vehicle on a trailer, or where it is tough to reach the wired switch. Includes: winch, aluminum fairlead, solenoid, wired switch, wireless remote, wire & hardware. Ideal for use on 3/4 ton trucks, 1-ton trucks, and equipment trailers.

Anvil Off-Road 17011AOR 12V Winch With Synthetic Rope Features:

  • 17,000 lbs. of pulling power 11mm x 91 Feet Long Rope
  • Motor: DC 12-volt motor with 7.0 HP
  • Gear Reduction Ratio: 364:1 of pulling force
  • Fairlead: Billet Aluminum to guide the rope from different angles

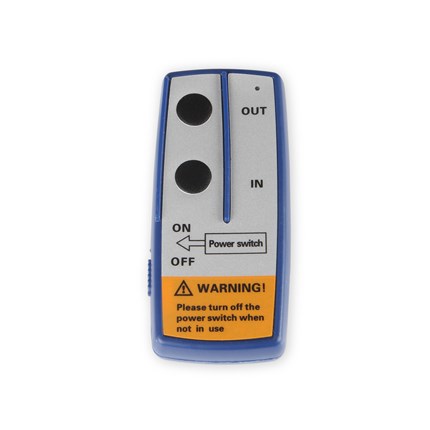

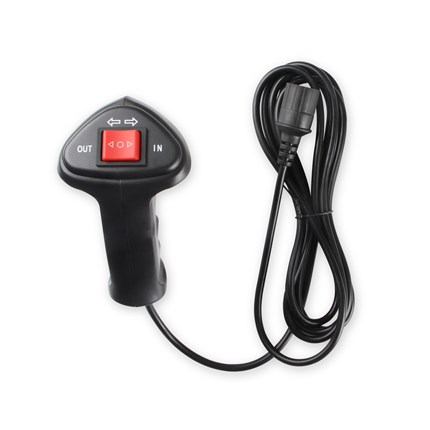

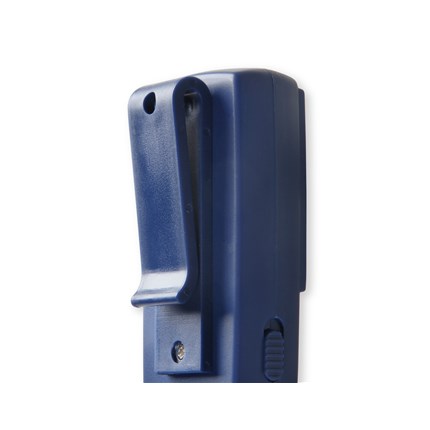

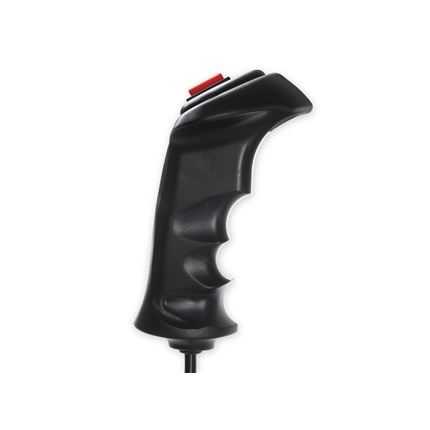

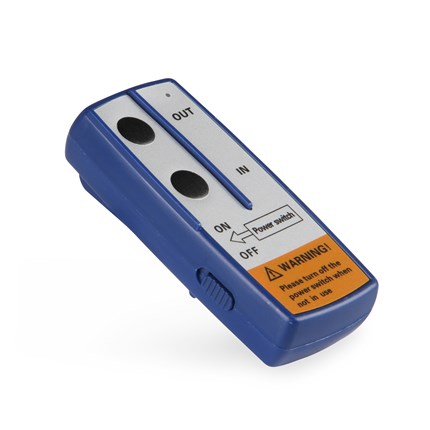

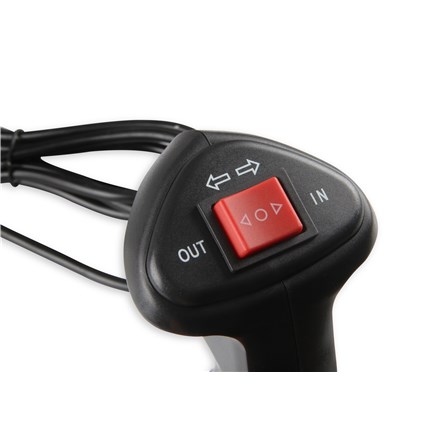

  • Wireless Remote Control & Wired Remote Switch allows for different options to control the motor

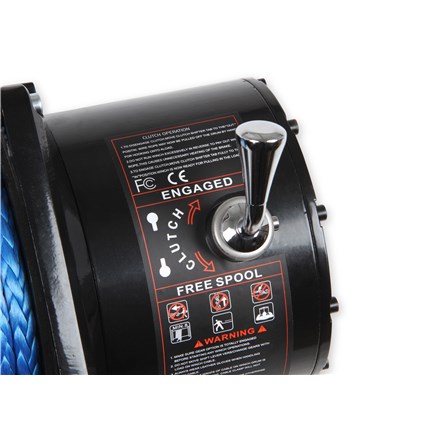

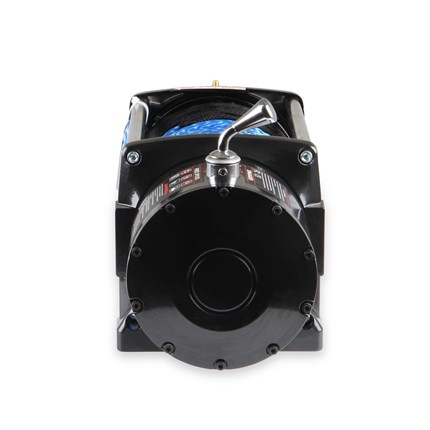

  • Free-Spooling with Clutch & Brake switch for disengaging the drum to manually pull the line or engage for the clutch & brake function
  • Overall Dimensions: 23.5” Long x 8.5” Wide x 10.1” Talll
  • Mounting Bolt Pattern: 10” x 4.5” 4-Bolt
  • Weight: 95 lbs.

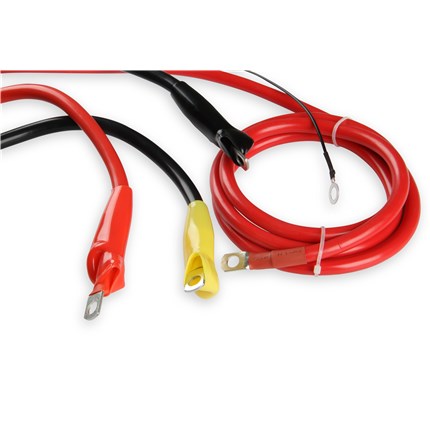

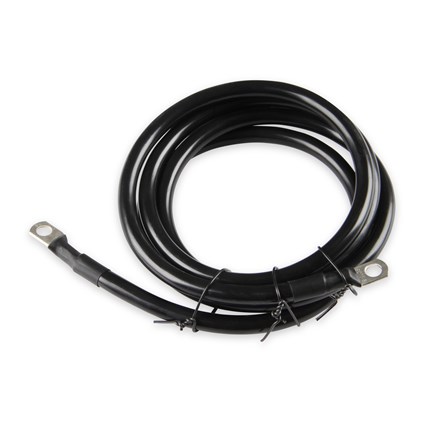

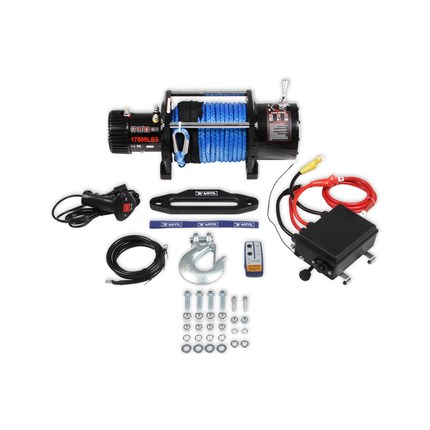

  • Includes: Winch, Aluminum Fairlead, Wired Remote Switch, Wireless Remote, Wiring & Hardware
  • For more information on Anvil call us at 1-859-737-4966.

Specs:

Brand Anvil Off Road
Cable Diameter 11 mm
Cable Length 91 Feet
Cable Type Synthetic Rope
Capacity 17,000 lbs. Single Line
Emission Code 5
Fairlead Aluminum
Finish Black
Gear Reduction Ratio 364:1
Height 10.1"
HP 7.0 HP
Length 23.5"
Mounting Bolt Pattern 10" x 4.5"
Mounting Plate Included No
Planetary Gear 3-Stage
Product Type Winch
Remote Control Wireless
Voltage 12-Volt
Warranty 90 Day
Weight 95 lbs.
Width 10.1"
UPC 090127109823
Part Number 17011AOR
