BD Diesel Xtruded Auxiliary Trans Cooler - Universal

Product Name: BD Diesel Xtruded Auxiliary Trans Cooler - Universal
Manufacturer: BD Diesel
Manufacturer Part #: 1300611
Thoroughbred Diesel Part #: BDD1300611
Fitment Notes: Universal

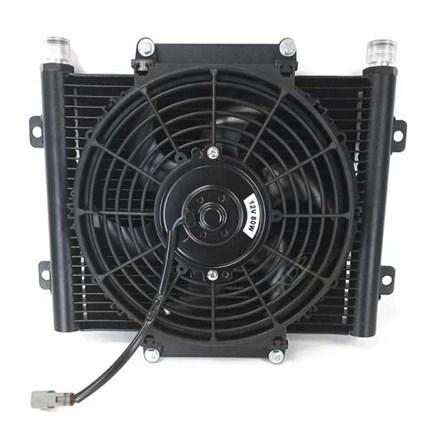

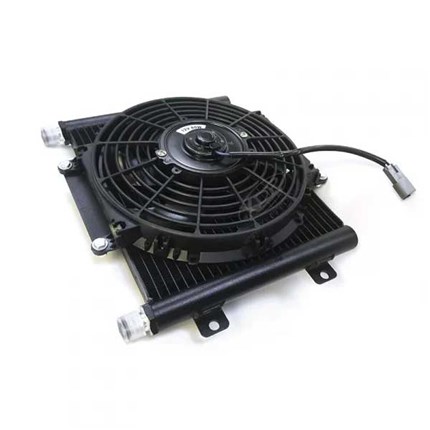

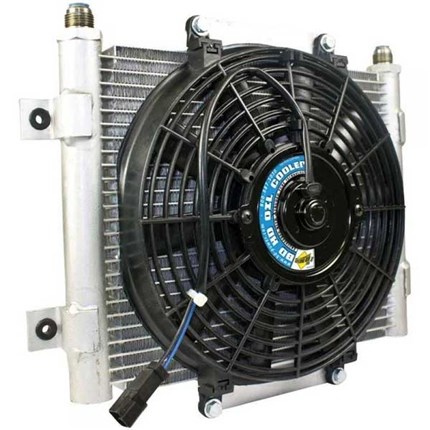

BD Diesel 1300611 Xtruded Auxiliary Trans Cooler is the Coolest Xtruded Transmission Oil Cooler for your diesel pickup. The BD-Power high efficiency micro extruded bar technology provides 22% more cooling over other designs. The 25 flat tubes have 200 micro extruded passages providing a large surface area to transfer heat for external air flow cooling. with a power rating of 33,930 BTU/HR it's designed for an excess of 30,000 GVW. Large end tanks provide up to 5/8" ID hose compatibility. 80-Watt, 10-inch, 800CFM electric fan offers the ultimate automatic transmission oil temperature control.

BD Diesel Xtruded Auxiliary Trans Cooler Features:

• 22% more cooling over other designs
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Motor is IP54 with 65% Duty cycle
• Cooler Assembly Only
• For more information on BD Diesel call us at 1-859-737-4966

WARRANTY

Parts

• 12-Months
• 12,000 Miles

NOTE

• Exceeding the Duty cycle may result in voiding the warranty
• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
