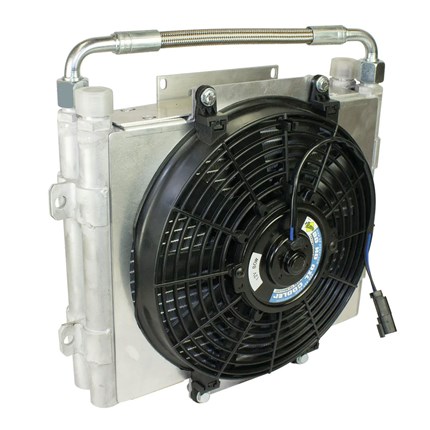

BD Diesel Xtrude Trans Cooler Double Stacked (No Installation Kit)

Product Name: BD Diesel Xtrude Trans Cooler Double Stacked (No Installation Kit)
Manufacturer: BD Diesel
Manufacturer Part #: 1300601-DS
Thoroughbred Diesel Part #: BDD1300601-DS
Fitment Notes: Universal

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

BD Diesel Xtrude Trans Cooler Double Stacked (No Installation Kit) Features:

• Cooler Assembly Only
• Double stacked cores deliver over 40,000 BTU/HR of cooling
• Over 350% temperature drop versus the factory system
• 136% better temperature drop than XTRUDED single core kit
• Motor is IP54 with 65% duty cycle
• For more information on BD Diesel call us at 1-859-737-4966

WARRANTY

Parts

• 12-Months
• 24,000 Miles

NOTE

• Exceeding the duty cycle may result in voiding the warranty
• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

EMISSIONS

• This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
