PPE Heavy-Duty Cast Aluminum 10l1000 Deep Transmission Pan - 2020-2023 GM Duramax L5P 6.6L (BLACK)

Thoroughbred Sku #: PPE128051420
Manufacturer Sku #: 128051420

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$377.99

free-shipping-no-handling
Simple

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
ppe

View More Products From

PPE

Product Details

Product Name: PPE Heavy-Duty Cast Aluminum 10l1000 Deep Transmission Pan - 2020-2023 GM Duramax L5P 6.6L (BLACK)
Manufacturer: PPE
Manufacturer Part #: 128051420
Thoroughbred Diesel Part #: PPE128051420

The Allison transmission has a reputation for performance and longevity. Now that it is available as the 10L1000, the reputation continues for the light truck market.

Get the best protection and performance out of your 10L1000 by upgrading to the PPE Heavy-Duty Cast Aluminum Deep Transmission pan. The deep PPE Pan Increases fluid capacity by a full gallon which lowers transmission fluid temperature. The engineered design includes cast aluminum fins and heat sinks to improve heat dissipation. The external gussets provide extra support to top flange and increase overall robustness.

PPE includes One-inch Neodymium magnet equipped 304 stainless steel drain plug with Viton O-ring seal and a 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals for the fluid level check port. These powerful magnets pull ferous metals out of the fluid before they can do damage to the internals.

PPE Deep Transmission Pan (Black) Features:

  • Increases fluid capacity by 4 quarts which lowers transmission fluid temperature

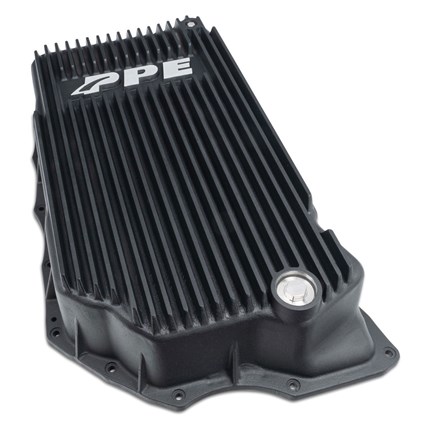

  • .75’’ inch external fins engineered to utilize underbody air flow

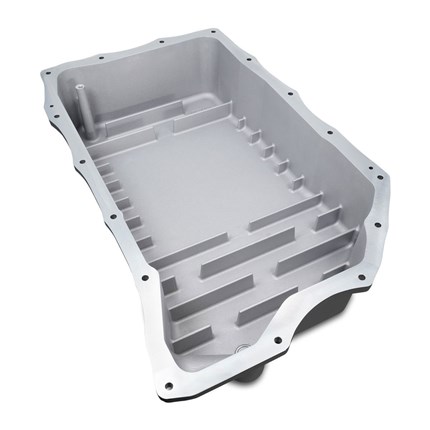

  • .75’’ and 1.2’’ internal heat sinks improve heat dissipation and reduce sloshing

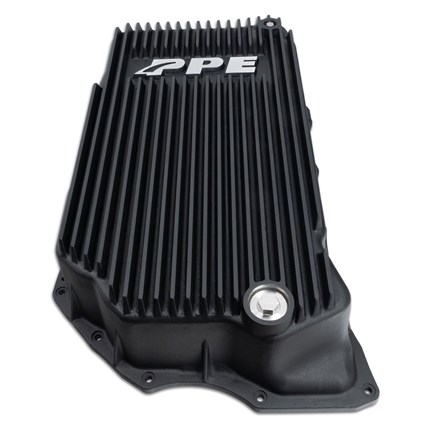

  • One-inch Neodymium magnet equipped 304 stainless steel drain plug with Viton O-ring seal
  • 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals the fluid level check port
  • Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor

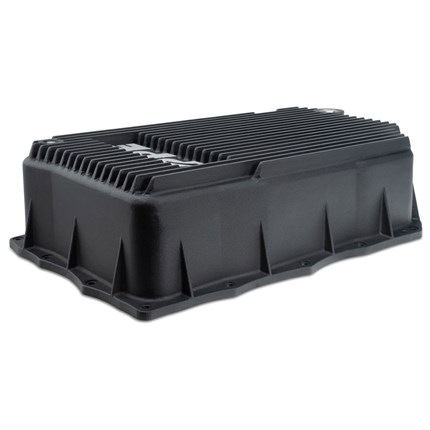

  • External gussets provide extra support to top flange and increase overall robustness
  • Compatible with OEM gasket
  • For more information on PPE call us at 1-859-737-4966

Reviews

Submit a question

  • I see this cannot be shipped to California. For us California guys, why would the CARB not approve a simple drain pan?Doesn't seem like it would impact emission requirements.

    Jon Bullock | 3/12/2024

    CARB approval is not just emissions related any longer. All aftermarket items have to be carb approved before it is able to be sold in California.

  • How much deeper is this pan than the stock pan, (actual measurement)? Thanks

    Nick Creek | 12/9/2021

    22.5’’x14.5’’x5.7’’

  • Your picture Carefully places one pan over the top of another so you can’t see if that drain plug is filler height or an actual drain plug does that pan have a drain plug in addition to the level indicator plug

    David | 12/5/2021

    Pan has a drain plug.

  • Do you offer an extra capacity Trany pan with a drain plug and filter and pickup for a. 2021 ford 4x4 4 door super duty 10 speed

    Mike Lopes | 1/9/2024

    No

  • Will this pan and filter work with a 5.7 gas engine with the zf8hp70h

    Earl Libby | 11/14/2020

    No.
