PPE Allison Deep Transmission Pan (Raw) - 01-19 Allison 1000 Transmission - 128051000

Simply stated, more is always better when it comes to transmission fluid. Higher volumes of fluid take longer to heat up allowing for more stable transmission temperatures which help to extend transmission life.

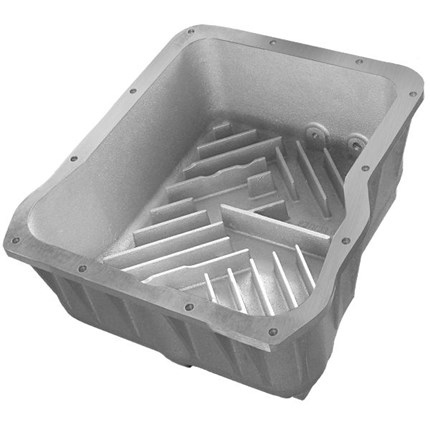

PPE’s Heavy-Duty DEEP Allison Transmission Pans hold an extra 4 quarts of fluid and are cast from high-quality aluminum for strength and optimal heat dissipation. Tall 1-inch internal and 3/4 inch external cooling fins reduce operating temperatures up to 40 degrees.

The PPE Heavy-Duty DEEP Aluminum Transmission Pan also features a high-powered Neodymium- magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

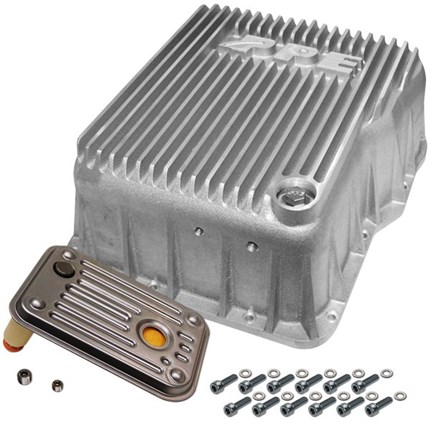

PPE’s exclusive built-in filter lock comes standard and keeps deep filters securely in place. Allen-head mounting bolts and a new deep filter are included.

PPE Allison Deep Transmission Pan Raw

• NOTE: This product CAN NOT ship to California due to CARB regulations.
• Cast from A356-T6 aluminum
• Robust side ribs provide added strength to transmission
• Retains use of high quality original Allison pan gasket
• Significantly reduces transmission oil temperatures
• Includes Allison deep pan filter
• Fluid capacity increased by 4 quarts

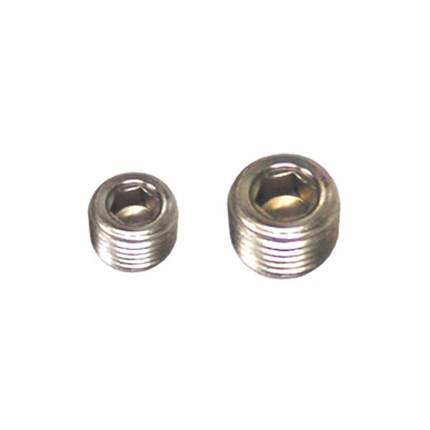

• 1/4" NPT and 1/8" NPT ports available for additional sensors
• Re-usable VITON drain plug O-ring

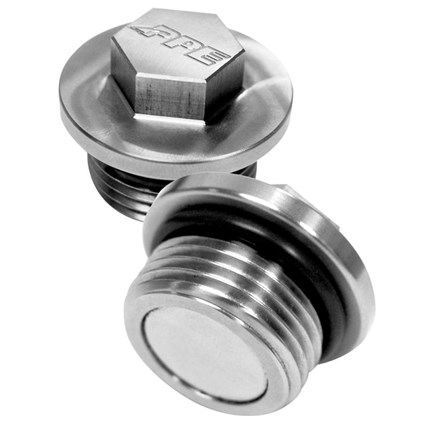

• 1" 304 Stainless Steel drain plug with 17mm hex head
• High strength Neodymium drain plug magnet collects harmful ferrous metals

Note: Recommended for all stock Allison transmissions. Highly recommended for transmissions equipped with Stage4, Stage5 and Stage6 kits.
