H&S Motorsports Intercooler Pipe Upgrade Kit (OEM Replacement / Silicone Version) - 11-16 Ford 6.7L

Thoroughbred Sku #: HSM122011
Manufacturer Sku #: 122011

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:

$255.00

+ Free Ground Shipping

Product Details

Product Name: H&S Motorsports Intercooler Pipe Upgrade Kit (OEM Replacement / Silicone Version) - 2011-2016 Ford Powerstroke 6.7L
Manufacturer: H&S Motorsports
Manufacture Part #: 122011
Thoroughbred Diesel Part #: HSM122011
Fitment Notes: H&S 2011-2016 Ford Powerstroke 6.7L

Here at H&S Motorsports, we are constantly striving to improve our products. We have been selling our 6.7L PowerStroke Intercooler Pipe Upgrade Kits for several years and decided it was time to re-evaluate the kits to see if any improvements could be made. With help from our silicone hose supplier, we were able to come up with a solution that is more simple, less expensive, and much easier to install than the original versions.

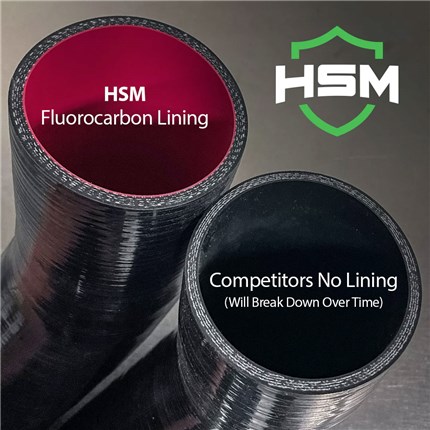

Rather than a stainless steel pipe and two silicone couplers, a single 5-ply stainless reinforced silicone hose is included to connect the intercooler to the supplied HSM billet hose adapter assembly. This means two "clamped" connection points have been eliminated entirely which makes for improved reliability and MUCH easier installation. The custom molded silicone hose matches the exact contour/shape of the factory intercooler piping which also eliminates the need to relocate the factory power steering reservoir.

This 5-ply stainless reinforced silicone hose is engineered to withstand over 100 PSI at 400°F!

Direct OEM replacement! No aftermarket tuning required!

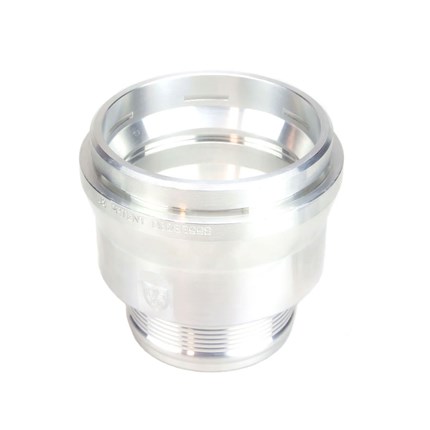

Still included in this kit is our beautiful CNC-machined billet aluminum hose adapter assembly that adapts the factory air intake valve to allow the use of a regular t-bolt clamp along with all of the clamps and hardware required to complete the installation quickly and painlessly.

Why would you need to replace the factory plastic intercooler pipe?

- We have seen the factory intercooler pipe fail on completely STOCK trucks. Turbochargers not only produce pressure, but also generate heat in the process. Once the combination of heat and pressure exceeds what the plastic intercooler pipe can handle, it will fail catastrophically, which could potentially leave you stranded on the side of the road.

Don't get stranded, install the H&S Motorsports Intercooler Pipe Upgrade Kit.

Kit Contents

  • 1-HSM Billet Hose Adapter Assembly
  • 1-5-Ply Stainless Reinforced Silicone Hose
  • 2-Stainless Steel T-Bolt Clamps

Warning!

This product is not legal in the state of California.
  • This product when used incorrectly may violate local, state, and federal laws pertaining to emissions, traffic, registration, and safety.
  • Use of this product may damage or destroy mechanical and/or electrical components of this vehicle.
  • This product MUST be used in conjunction with a tuning device that allows removal of the throttle body and electronics, otherwise you WILL have check engine lights.
  • Use of this product may void or nullify the vehicles factory warranty.
  • User understands that motorsports are dangerous, and that installation of this product may subsequently require special driving skills or techniques to safely operate the vehicle.
  • User assumes sole responsibility for the safe, proper, and legal use of the vehicle at all times.
  • The purchaser and end user releases, indemnifies, discharges, and holds harmless H&S Motorsports, LLC from any and all claims, damages, causes of action, injuries, or expenses resulting from or relating to the use or installation of this product that is in violation of the terms and conditions on this page, the product disclaimer, and/or the product installation instructions. H&S Motorsports will not be liable for any direct, indirect, consequential, exemplary, punitive, statutory, or incidental damages or fines cause by the use or installation of this product.
