PPE Oil Filter Mount Aluminum Billet

Product Name: PPE Oil Filter Mount Aluminum Billet
Manufacturer: PPE
Manufacturer Part #: 114002100
Thoroughbred Diesel Part #: PPE114002100
Fitment Notes: Universal

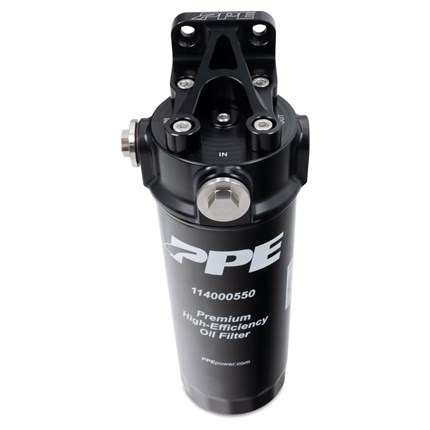

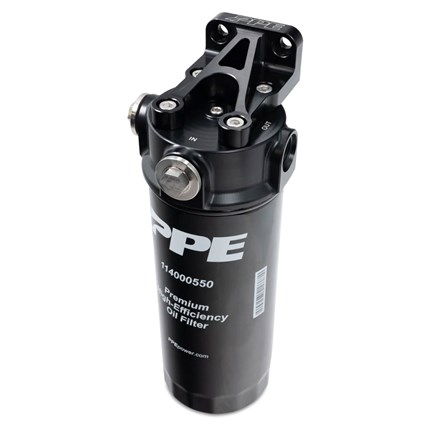

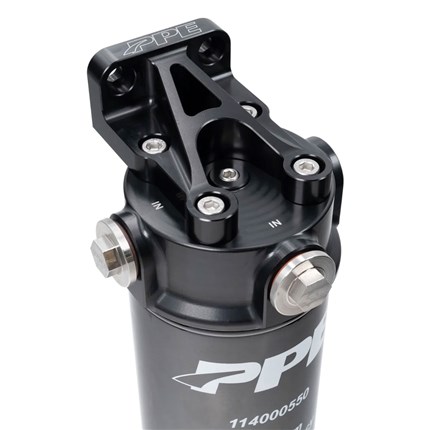

6061-T6 Aluminum Remote Oil Filter Mount

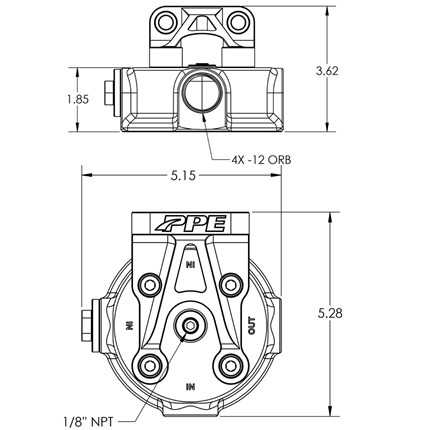

This remote filter mount has a higher flow rate than stock and is compatible with a variety of filters, including HP4 and HP6A Racing Filters. It features one outlet and three inlet ports, all -12 ORB for an easy leak-free installation and non-restrictive flow. Two out of the three inlet ports will be plugged by PPE Neodymium-magnet-equipped drain plugs, which pull harmful ferrous particles out of your oil. These plugs can be serviced by simply unplugging them and wiping out the metal particles trapped. It also features a 1/8” NPT port for an oil pressure/temperature sending unit. The mounting bracket can be mounted in four different positions to suit your application. Two threaded oil filter adapters are also included: 13/16”-16 (fits PPE Filters and GM filters) and 1 ½”-12.

Relocate your oil filter with this Remote Oil Filter Mount. Whether you are relocating your stock oil filter (PF2232) for easier access or wanting to use a larger filter such as our PPE High-Performance Engine Oil Filters (114000550/555/560), complete your project with this remote filter mount.

PPE Oil Filter Mount Aluminum Billet Features:

• High-flow, leak-free -12 ORB Inlet/Outlet ports
• 1/8” NPT sensor port

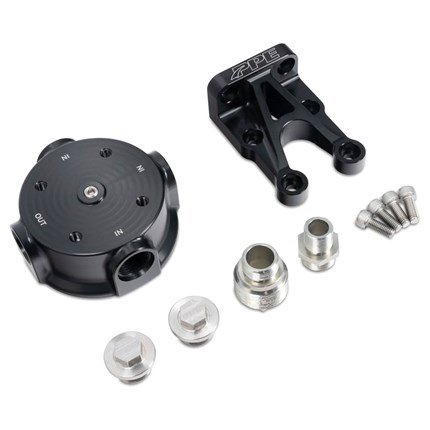

• Two Neodymium-magnet-equipped plugs included
• 13/16”-16 and 1-1/2”-12 threaded oil filter adapters included (more adapters available on PPEPower.com)
• Compatible with HP4 and HP6A racing filters
• 360° adjustable inlet/outlet orientation
• CNC-machined and black anodized 6061 Aluminum Construction
• For more information on PPE call us at 1-859-737-4966
