BD Diesel Dodge 68RFE Performance Transmission - 2007.5-2018 6.7L 68RFE 4WD

Thoroughbred Sku #: BDD1064264-CRE

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$5,515.00

+ $200.00 Shipping
NOTE: Shipping costs from using prepaid return labels from BD’s website will be deducted from credit unless otherwise noted.

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

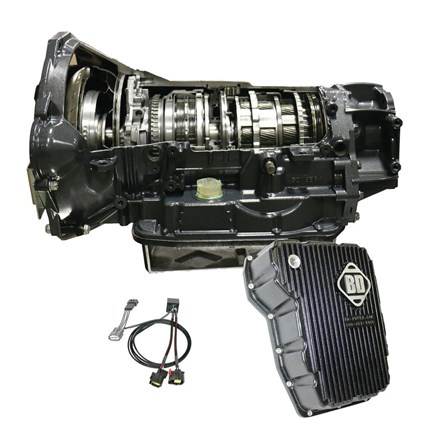

Product Name: BD Diesel Dodge 68RFE Performance Transmission - 2007.5-2018 6.7L 68RFE 4WD
Manufacturer: BD Diesel
Manufacturer Part #: 1064264
Thoroughbred Diesel Part #: BDD1064264
Fitment Notes: 2007.5-2018 Dodge 6.7L 68RFE 4WD

BD Diesel Dodge 68RFE Performance Transmission
2007.5-2018 6.7L 68RFE 4WD


WARRANTY : 36-month / 150,000 mile limited warranty on non competitive, racing or sled-pulling applications.

The 68RFE coupled behind the Dodge/Cummins 6.7L engine represents a new breed of transmission that was built to take on the high torque and horsepower of the Cummins engine but only at stock specs.

There are many of those whom have already pushed the limits of their transmission with performance enhancements and hauling heavy loads that know all too well how much is too much for the 68RFE. BD transmissions are designed to take on what most 68RFE owners are looking for responding with smooth sharp shifts to keep the engine in the torque range required.

The electronic controls of the 68RFE and 6.7L Cummins combination makes the replacement of the transmission too complex for the back yard mechanic or small shop to perform - special scanners, gauges, tooling and flushing machines are required to get the job done right within the warranty specifications without instant failures occurring. BD has set up an expanding network of installation centers that can supply and install your new BD 68RFE transmission.

Each transmission is dyno tested and comes with BD's Heavy Duty Deep Sump aluminum transmission pan to add strength to the case preventing flexing and internal oil leakage.

We have matched BD's proven Triple Torque Force Converter to this application. Its one-piece billet cover prevents warping and trapezoid teeth hold the clutches that provide three times the holding power over stock units resulting in less friction wear and no rattling. BD's own designed cast stator offers the ultimate torque multiplication and hits the target fluid coupling speed.

The larger input shaft of the 68RFE will handle the shock of the Triple Torque Force 3-clutch engagement but if you are demanding more HP and with less risk, we recommend a Billet Input shaft - broken shafts are not covered under the warranty program.

Note: DOES NOT include Converter

BD Diesel Dodge 68RFE Performance Transmission Features:

  • New regulator valve design
  • New valve body separator plate
  • Pressure Control module
  • Deliver up to 250 PSI clutch apply pressure
  • 150% of the holding force to prevent clutch slippage
  • Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
  • Clutch packs and drums have new machined designs
  • Special machined 2nd gear piston to incorporate additional thick-as-stock clutch fiber and steel plates
  • Modified 4th gear apply piston to accept a new heavier Billet retainer
  • Steel girdle to strengthen the piston and give a broader apply area
  • Heavy Duty cam and roller style one-way clutch
  • Not warranted for Race or Sled Pull use

Reviews

  • What is the horsepower rating for this transmission and will a stock torque converter

    Bobby | 11/3/2023

    500 hp

  • What’s the current lead time on this transmission

    Kyle A Rankin | 8/23/2022

    4-6 weeks lead time .

  • I have one of these Transmissions what type of transmission fluid does it use

    Chris veal | 3/16/2022

    Any OE spec transmission fluids.

  • Will this transmisson hold 1300 ft lb of torque at the flywheel

    Stephen E Whitley | 10/12/2021

    Not rated for that high HP.

  • What lead time on tranny

    Terry sautter | 7/24/2021

    3-4 week lead at this time.

  • What is the trans built to for hp and also is there a new upgrade half pump inside the new trans

    Tyler Swords | 3/8/2020

    no Hp ratings on the transmission. Better than stock trans build includes a billet input shaft. yes

  • Do these come with a torque converter? Besides upgraded parts as options, are these ready to install out of the crate?

    J | 10/12/2019

    No torque convertor not included. Transmissions ready to install.

  • Is this transmission fitted for a 2016 Dodge ram 2500 Cummins

    Leoncio Morales | 9/10/2019

    Yes
