BD Diesel Performance Elbow Orifice - 94-02 5.9L Cummins - 1040310

Thoroughbred Sku #: BDD1040310
Manufacturer Sku #: 1040310

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
Warning Icon with Black Exclamation Point and Yellow BackgroundWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

$36.00

+ Free Ground Shipping

Product Details

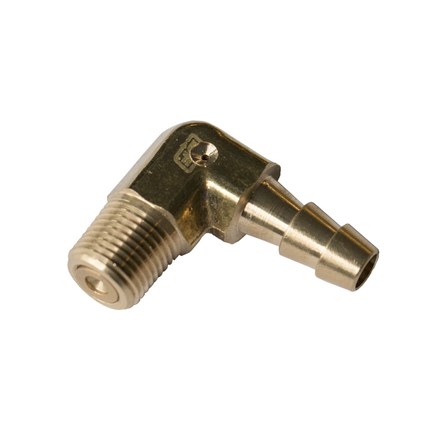

Product Name: Performance Elbow Orifice
Manufacturer: BD Diesel
Manufacture Part #: 1040310
Thoroughbred Diesel Part #: BDD1040310
Fitment Notes: 1994-2002 Dodge Cummins 5.9L

Are your intercooler boots & hoses blowing off? This is a common problem with the Ram Diesel especially for those who love high boost pressure. Stock intercooler boots & hoses have been blowing off at as little as 25 PSI which can ruin your day if you are racing at the track or pulling that steep grade.

Now available from BD, Silicone Nomex intercooler boots & hoses that can hold up to 75 PSI and high torque t-bar clamps for a tight fit.

Cummins 6BTA-5.9L Turbo Wastegate Performance Orifice

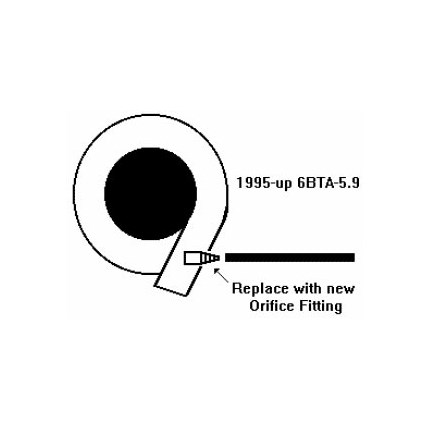

The Ram Orifice is calibrated to provide 50% more turbo boost on initial acceleration. Due to the increase of more constant boost, it is suggested that a performance air filter, such as K&N or Accel, be installed in the vehicle to accommodate the extra flow. The conventional air filter may collapse under the constant flow. Later version trucks and motorhomes, there is a 90’ barbed elbow fitting located on the compressor housing of the turbo, just below the air intake hose. Remove the rubber hose attached to this fitting and replace fitting with our Orifice fitting. Reattach rubber hose to new fitting.

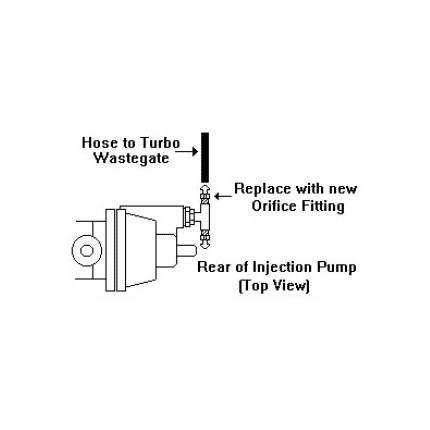

On earlier trucks and motorhomes, where there is no 90’ barbed elbow on the turbo's compressor housing, there is a tee fitting on the top/rear housing of the injection pump. The tee fitting will have two barbed fittings screwed into it, with rubber hoses running to them. One of the hoses runs from the tee fitting over to the wastegate on the turbo, remove this hose from the barb on the tee fitting, then replace the barbed fitting from the tee with the Orifice fitting. Reattach rubber hose to new fitting.

Features:

  • Inexpensive way to increase boost
  • No need to adjust, unit is pre-set from factory
  • Easy to install
  • Calibrated to provide 50% more turbo boost on initial acceleration
  • Due to the increase of more constant boost it is suggested that a performance air filter be installed in the vehicle to accommodate the extra flow

Warranty
Parts

  • 12-Months
  • 12,000 Miles

NOTE: This part CAN NOT ship to California due to CARB regulations
