Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: SBT10-1028 Manufacturer Sku #: 10-1028
$1,249.00
2008 - 2010 Ford F250
2008 - 2010 Ford F350
2008 - 2010 Ford F450

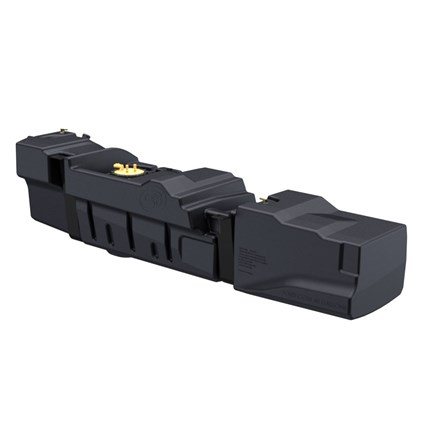

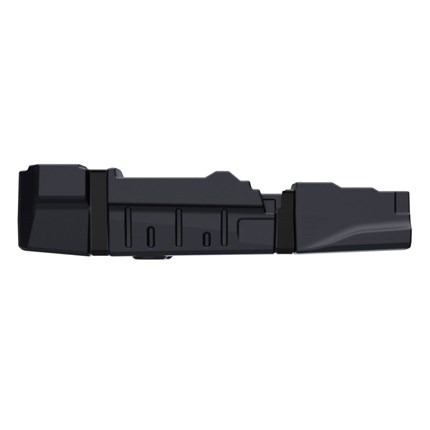

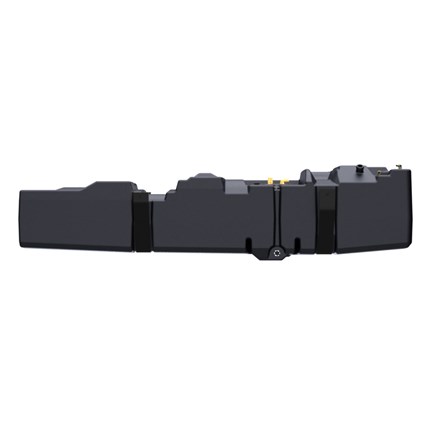

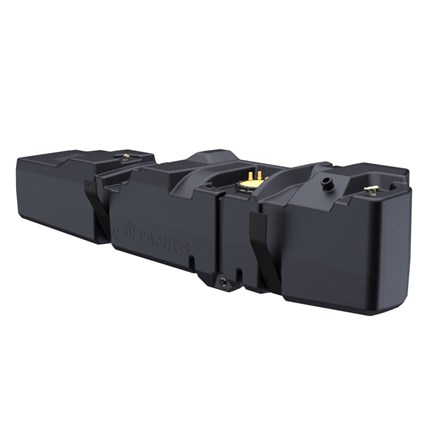

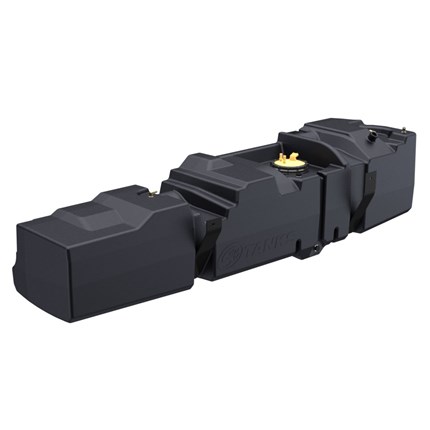

Product Name: S&B 60 Gallon Fuel Tank - 2008-2010 Ford Powerstroke 6.4L F250/F350 Crew Cab Short Bed Manufacturer: S&B Tanks Manufacturer Part #: 10-1028 Thoroughbred Diesel Part #: SBT10-1028 Fitment Notes: 2008-2010 Ford Powerstroke 6.4L F250/F350 Crew Cab Short Bed
This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
More Fuel. Less Hassle.
Holds 9 more gallons than competitor tanks!
S&B's 60-gallon fuel tank directly replaces the OEM 29-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 9 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!
TRANSFER PUMP & AFTERMARKET LIFT PUMP
Save space in your truck bed and pull fuel out of your large S&B Tank with our GPI Transfer pump kit. This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps.
WARNING For Those Using Auxiliary Fuel Tanks
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.
Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
S&B 60 Gallon Fuel Tank Features:
The walls of the tank are 1/4-inch thick.
No diesel tanks only at this time.
No modifications needed for the DEF tank.
S&B Tanks Replacement Tank For2003-2020 Dodge/Ram Cummins Crew, Quad & Mega Cab Short Bed
No it wont fit. The 10-1005 is specific to the 2500 Dodge Crew Cab Shortbed trucks, S&B Tanks will be releasing late next month a tank for all the Mega Cab applications which is still in R&D at this time.
2013-20 Ram Cummins 6.7L, Crew Cab Short Bed (6’ 4”).
52 Gallon Replacement Tank For 2013-19 Ram Cummins 6.7L, Crew Cab Short Bed
