Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: SBT10-1024 Manufacturer Sku #: 10-1024
$1,549.00

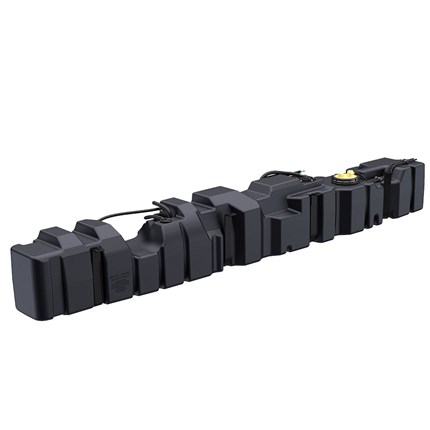

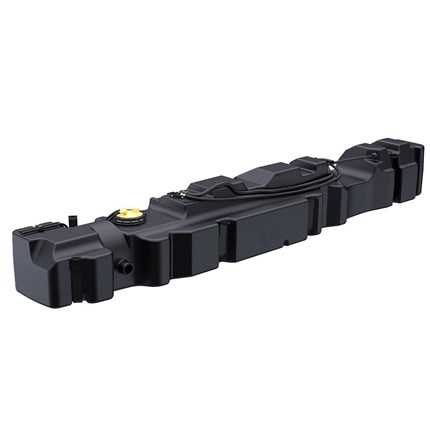

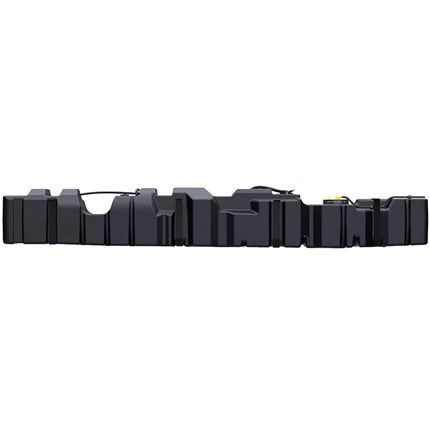

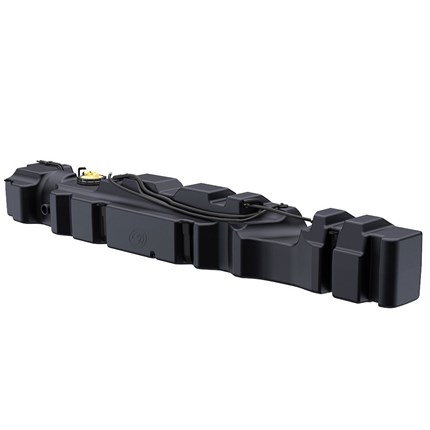

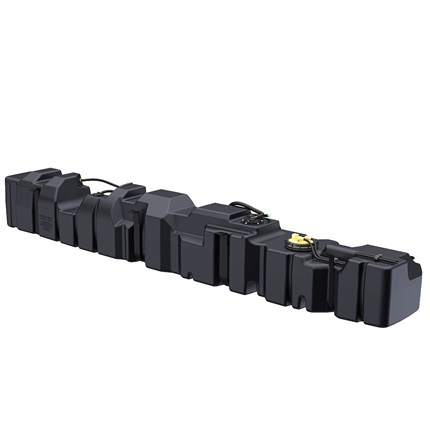

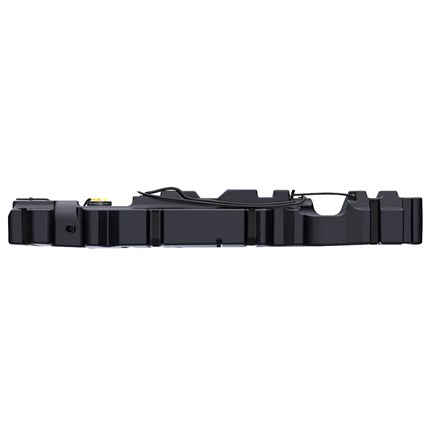

Product Name: S&B Tanks 47 Gallon Replacement Fuel Tank - 2007-2018 Mercedes Sprinter 144" & 170" Wheelbase Manufacturer: S&B Tanks Manufacturer Part #: 10-1024 Thoroughbred Diesel Part #: SBT10-1024 Fitment Notes: 2007-2018 Mercedes Sprinter 144" & 170" Wheelbase
This tank will NOT fit 170" Crew Vans or 144" Dually Vans, part # 10-1026 will work for the 170" Crew Vans and 144" Dually Vans. This tank will also not work with vans that have ride height sensors connected to the rear axle, please see important note C on the instructions.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
GET OUT AND STAY OUT. MORE TIME TO EXPLORE.
S&B Tanks are high capacity direct replacements for the OE fuel tank. Allowing for almost double the fuel capacity, so you can go further and not waste time at the pumps. Let us fuel your adventure.
PLUG AND PLAY INSTALLATION
The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.
YOUR FUEL GAUGE WORKS AS NORMAL.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. From full to empty you will always know how much fuel is in your tank. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.
BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.
Made out of 1/4” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
WARNING For Those Using Auxiliary Fuel Tanks
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.
Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
S&B Fuel Tank Features:
Here is the installation manual.
https://www.sbfilters.com/10-1024install
