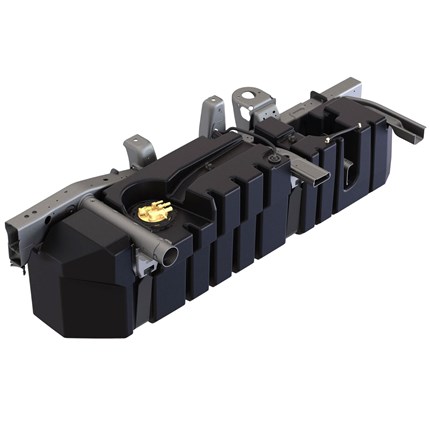

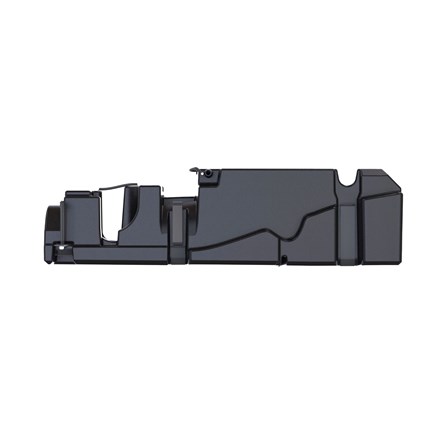

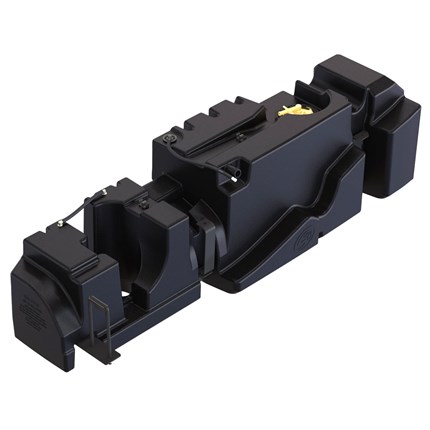

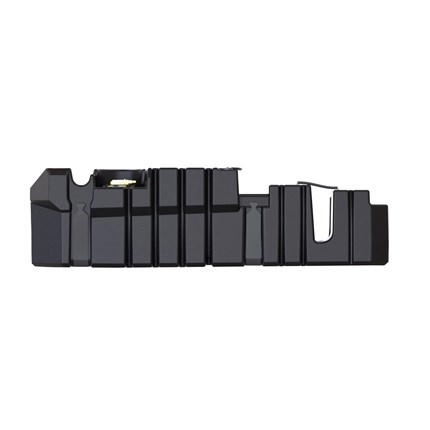

S&B Tanks 60 Gallon Replacement Fuel Tank For 2020-2022 GM Duramax 6.6L Crew Cab Long Bed

Product Name:S&B Tanks 60 Gallon Replacement Fuel Tank For 2020-2022 GM Duramax 6.6L Crew Cab Long Bed
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1016-1
Thoroughbred Diesel Part #: SBT10-1016-1
Fitment Notes: 2020-2022 GM Duramax 6.6L Crew Cab Long Bed

Important Note about the Fuel Gauge Operation:

• The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks.
• The fuel gauge will operate properly. When you fill up your tank, the fuel gauge will remain on full until about 4-5 gallons have been used and then the gauge will start to move normally. GM trucks monitor for an inoperative fuel gauge, so in some situations, until it starts to move, the truck’s computer will drop the gauge to empty to get the driver’s attention even though your tank is full. The gauge will return to its normal position after restarting the engine. Once the fuel level drops 4-5 gallons from full, the fuel gauge will return to its normal operation.
• The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.
• The nozzle at high flow fuel stations(truck stops) will not be able to fill automatically.

ALMOST DOUBLE YOUR RANGE.

S&B's 60-gallon fuel tank directly replaces the OEM 36-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!

INNOVATIVE BAFFLED DESIGN.

S&B Tanks were engineered with a built-in baffled design. This helps to minimize fuel sloshing. This helps to contain fuel around the fuel pick up and prevents unwanted tank sloshing noise.

LOCKED IN FOR A TRUE SEAL.

The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect seal and securely retains the fuel pump onto the tank.

BUILT TO LAST.

S&B Tanks are made out of an extremely strong crosslink polyethylene and backed by our lifetime warranty.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.67(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure. Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

S&B Fuel Tank Features:

• Includes Straps
• OEM Locking Ring
• 24 Gallon Capacity Increase
• Built-In Baffled Design Reduces Sloshing
• Compatible With Gooseneck & 5th Wheel Hitches
• For more information on S&B Tanks call us at 1-859-737-4966

Specs

• Compatible with gooseneck and 5th wheel Yes
• Compatible with oe skid plate No
• Drain No
• Ground clearance compare to oe tank 3" Lower
• OEM Capacity 36
• Sending unit OEM
• Straps included Yes
• Sump No
• Tank type Midship
• Transfer pump ready Yes
