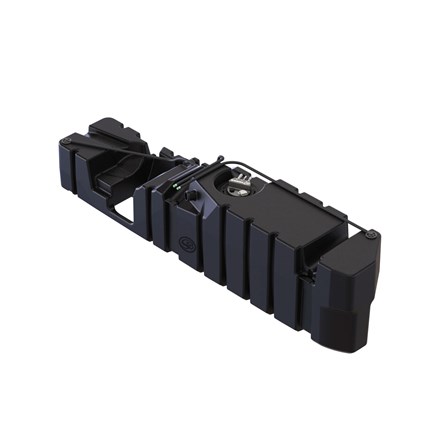

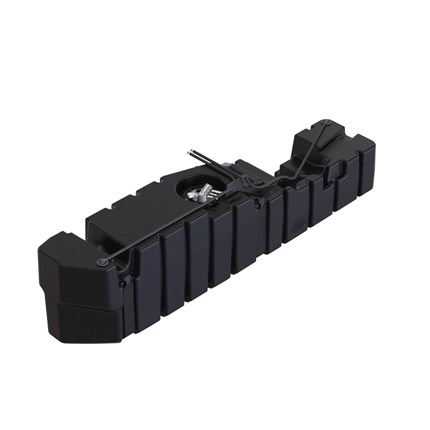

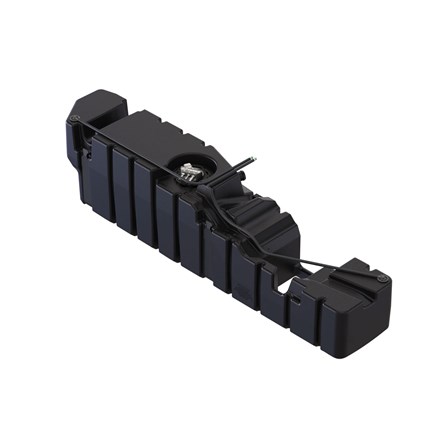

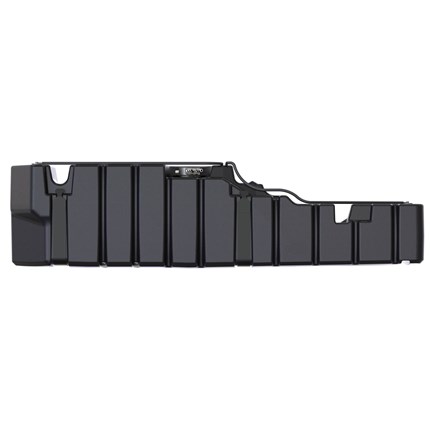

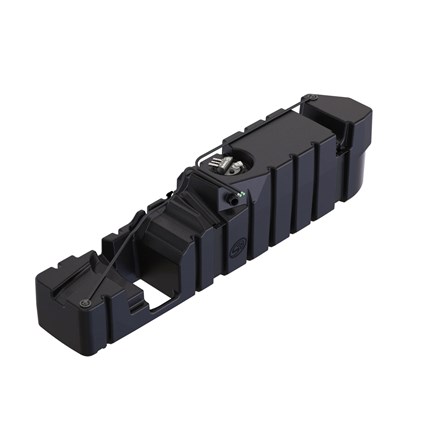

S&B Tanks 65 Gallon Replacement Fuel Tank for 2001-2004 GM Duramax 6.6L LB7 Crew Cab Long Bed

Product Name:S&B Tanks 65 Gallon Replacement Fuel Tank for 2001-2004 GM Duramax 6.6L LB7 Crew Cab Long Bed
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1013
Thoroughbred Diesel Part #: SBT10-1013
Fitment Notes: 2001-2004 GM Duramax 6.6L LB7 Crew Cab Long Bed

Important Note about the Fuel Gauge Operation:

• The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks.
• The fuel gauge will operate properly. When you fill up your tank, the fuel gauge will remain on full until about 4-5 gallons have been used and then the gauge will start to move normally. GM trucks monitor for an inoperative fuel gauge, so in some situations, until it starts to move, the truck’s computer will drop the gauge to empty to get the driver’s attention even though your tank is full. The gauge will return to its normal position after restarting the engine. Once the fuel level drops 4-5 gallons from full, the fuel gauge will return to its normal operation.
• The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.

31 Gallons Larger Than OEM & 3 Gallons Larger Than Competitor Tanks.

S&B's 65-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 3 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!

INCLUDED OEM STYLE SENDING UNIT.

Includes a premium OEM style sending unit. ($300 value)

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.67(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure. Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

S&B Fuel Tank Features:

• Crosslink Polyethylene Construction
• Built-In Baffled Design Reduces Sloshing
• Includes New Sending Unit & Locking Ring
• Direct Replacement For The Stock Fuel Tank
• No Cutting Or Drilling Required For Installation
• For more information on S&B Tanks call us at 1-859-737-4966
