Industrial Silver Bullet 69 PhatShaft Turbo - 03-04 Dodge Cummins

Thoroughbred Sku #: IIS369241741A
Manufacturer Sku #: 369241741A

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$2,532.10

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

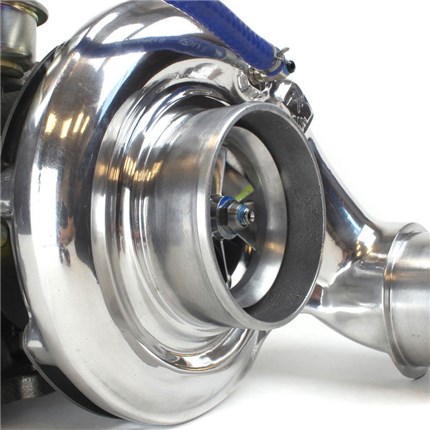

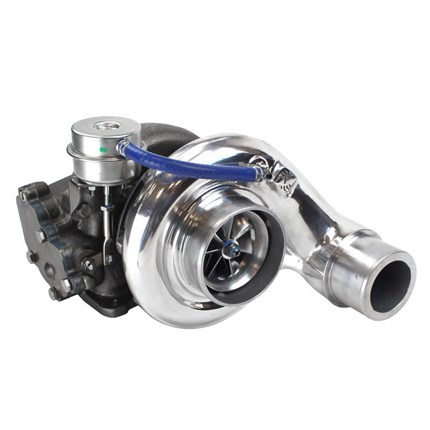

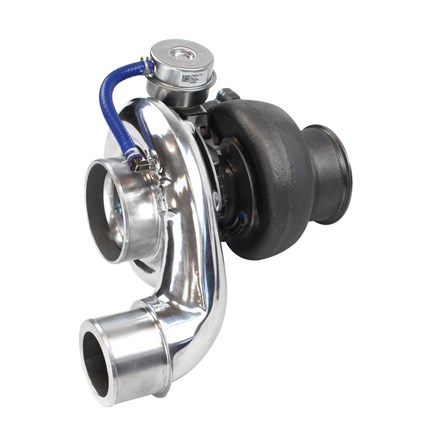

Product Name: Industrial Silver Bullet 69 PhatShaft Turbo
Manufacturer: Industrial Injection
Manufacturer Part #: 369241741A
Thoroughbred Diesel Part #: IIS369241741A
Fitment Notes: 2003-2004 Dodge Cummins

The Silver Series PhatShaft is our latest effort to achieve perfection. Much like the Super PhatShaft it was designed to handle multiple fueling upgrades and comes in three sizes. 62mm 64mm, and 66mm and now 69mm. What separates the Silver Series PhatShaft from the Super PhatShaft is our new technology 74mm turbine wheel. To improve on the Super PhatShaft turbos we needed improve performance at a lower rpm range and we needed to reduce compressor surge.  The solution is the 74mm turbine which is the latest in turbine trim design technology.  The new trim design transfers exhaust gas energy more efficiently than any other turbine on the market. It also allows for better exhaust gas expulsion which results in lower EGT’s and quicker rotor acceleration. The most important benefit of the 74 mm turbine wheel is that it gets rid of turbo surge and broadens the power range. All silver series turbo come with a 360 degree thrust bearing and an appealing polished compressor housing. The Silver series utilizes the proven 14cm exhaust housing with a modified exhaust nozzle. We maximize the wastegate ports in the 14cm housing by enlarging the diameter. The turbine housing wastegate cover it custom build to allow full wastegate travel. Like all PhatShaft turbochargers they are equipped with dual grooved high performance bearings and an adjustable boost elbow.

The Silver Bullet 69 was designed to handle multiple fueling upgrades and increase overall performance. The Bullet comes equipped with an extended tip 69mm forged milled compressor wheel and 360 degree thrust bearing. The Silver Bullet utilizes the 74mm turbine wheel and comes standard with an appealing polished compressor housing. The Silver Bullet uses a 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow.

Industrial Turbo Features:

  • Increased Performance
  • Lower EGTs
  • (FMW) Forged Milled Compressor Wheel
  • 360* Thrust Bearing
  • Dual Grooved High Performance Journal Bearings
  • Full Travel Wastegate Modification
  • Drop In Replacement Turbo
  • 69/74/14
  • For more information on Industrial Injection call us at 1-859-737-4966.

NOTE: Requires HX40 Downpipe
