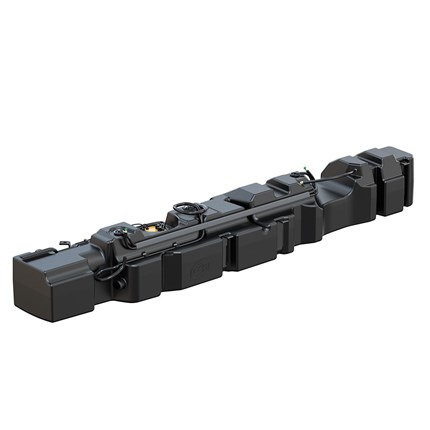

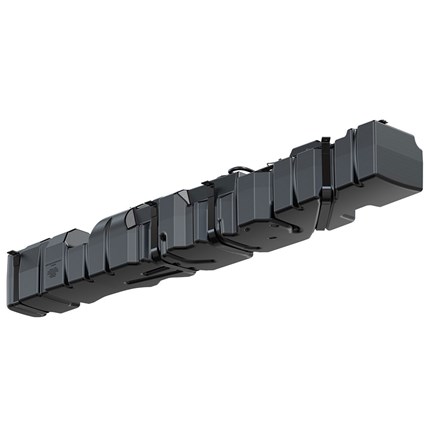

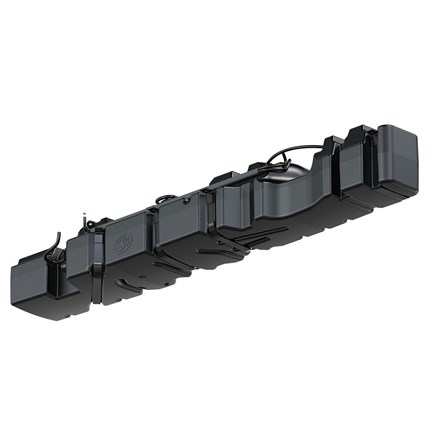

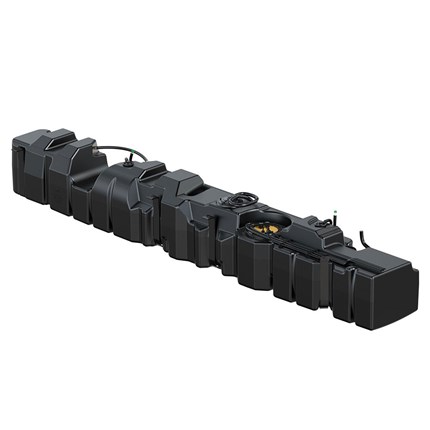

S&B Fuel Tank (47 Gallon) - 19-22 Mercedes/Dodge Sprinter Vans

Thoroughbred Sku #: SBT10-1025
Manufacturer Sku #: 10-1025


$1,549.00

free-shipping-no-handling

Product Details

Product Name: S&B Fuel Tank (47 Gallon) - 2019-2022 Mercedes/Dodge Sprinter Vans
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1025
Thoroughbred Diesel Part #: SBT10-1025
Fitment Notes: 2019-2022 Mercedes/Dodge Sprinter Vans

This tank will NOT fit 170" Crew Vans or 144" Dual Rear Wheel Vans. part # 10-1027 will work for both.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.

GET OUT AND STAY OUT. MORE TIME TO EXPLORE.

S&B Tanks are high capacity direct replacements for the OE fuel tank. Allowing for almost double the fuel capacity, so you can go further and not waste time at the pumps. Let us fuel your adventure.

PLUG AND PLAY INSTALLATION

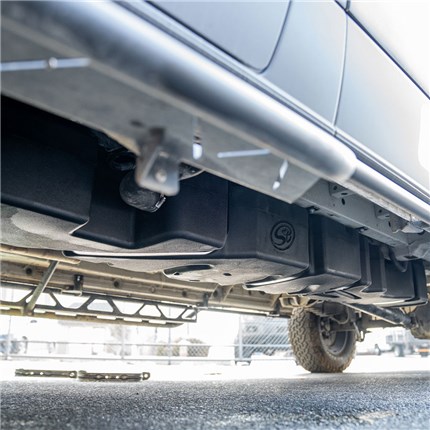

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.

YOUR FUEL GAUGE WORKS AS NORMAL.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. From full to empty you will always know how much fuel is in your tank. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.

Made out of 1/4” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

S&B Fuel Tank Features:

  • Direct-Fit Installation
  • 1/4” Thick Crosslink Polyethylene
  • 23 Gallon Increase Over Stock Tank
  • Lifetime Warranty
  • For more information on S&B Tanks call us at 1-859-737-4966



Street Legal In All US States Yes
Tank Type Midship
S&B Capacity (Approximate) 47 gallons
OEM Capacity 24 Gallons
Weight (Dry) 45lbs
Ground Clearance Compare to OE Tank 1.5"
Sump No
Drain No
Sending Unit OE
Straps Included Yes

Reviews

  • Does this tank come with the additional rear strap?

    Steven Lucarelli | 1/26/2022

    I show 3 straps included in the kit. looks like you reuse the oem original strap. Here is the installation manual.

    https://www.sbfilters.com/10-1025install

  • Do you guys carry the 7-18 Mercedes S&B 10-1024 tank?

    Dana Myers | 12/19/2021

    Yes, that item is on backorder at this time.
