DieselSite 17-Row Coolermax Transmission Cooler - 94-03 Ford Powerstroke 7.3L

Product Name:DieselSite 17-Row Coolermax Transmission Cooler - 1994-2003 Ford Powerstroke 7.3L
Manufacturer: Diesel Site
Thoroughbred Diesel Part #: DSTCOOLTRAN9403FD
Fitment Notes: 1994-2003 Ford Powerstroke 7.3L

Extend the life of your transmission efficiently and economically!

THE ISSUE WITH COOLING:

Thousands of automatic transmissions fail every year from overheating.  Whether you're towing a heavy load or driving in stop-and-go traffic, you risk overheating your transmission fluid.  When your transmission fluid reaches 200°, it starts breaking down.

• at 240° varnishes form and transmission life expectancy is halved.

• at 260° transmission internal seals and rubber parts harden; major damage starts.

• at 295° or above the transmission starts slipping, clutches burn, and carbon forms.

With each 20° drop in operating temperature, your fluid and equipment life doubles.  Installing a cooler before damage starts and by reducing the transmission fluid temperature by as much as 60° can greatly extend the life of your transmission.

THE DIESELSITE SOLUTION:

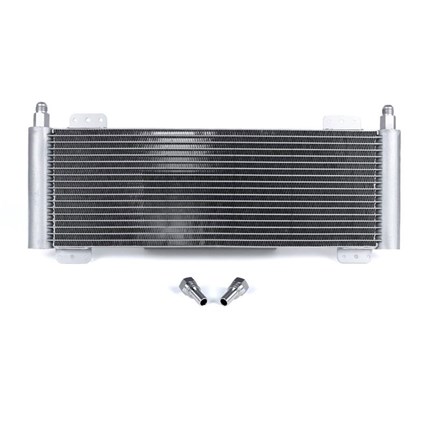

Extend the life of your transmission, increase towing performance, and protect your vehicle's transmission with a simple to use addition to any towing set up.  The COOLERMAX transmission cooler is specially designed by DIESELSITE to be a reliable upgrade over your existing transmission cooler OR as an auxiliary unit used with your OEM cooler.

• -8AN inlet size
• 59,000 BTU rating
• 22.85" x 7.25" x 1.25" core
• Rated at 150 PSI working pressure and 750 PSI burst pressure
• Efficient 17-row stacked-plate core for optimal performance with minimal pressure loss
• JIC cooler fittings to 316 stainless hose barb adapters for corrosion prevention and leaks
• Universal mounting brackets to ensure a hassle-free installation; mount anywhere space permits
• Same bracket footprint as the Tru-Cool® 4739 transmission cooler while adding over 10,000 BTUs of cooling

Cooler can be installed with fittings in any direction.  Up, down or sideways depending on your application.  The optimal installation is with fitting facing up.  This will ensure all air is purged from the system and 100% of the cooler is used for heat exchange.

HARDWARE OPTIONS:

The COOLERMAX transmission cooler can be purchased with cooler fittings only or with an optional installation kit to help save on time and parts collecting.

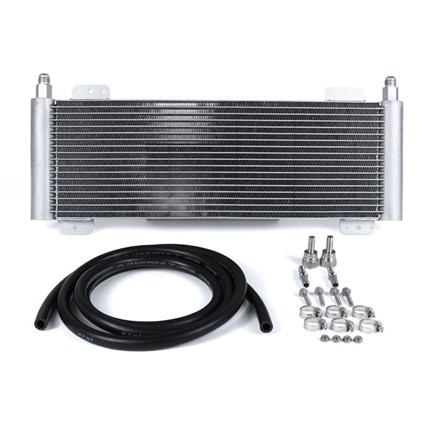

The installation kit includes 6 feet of transmission hose, menders, clamps, zip tie mounting kit, and mounting hardware.

Please choose the appropriate fitting size based on your trucks line sizes when choosing your selection.

DieselSite 17-Row Coolermax Transmission Cooler Features:

• -8AN inlet size
• 59,000 BTU rating
• 22.85" x 7.25" x 1.25" core
• Rated at 150 PSI working pressure and 750 PSI burst pressure
• Efficient 17-row stacked-plate core for optimal performance with minimal pressure loss
• JIC cooler fittings to 316 stainless hose barb adapters for corrosion prevention and leaks
• Universal mounting brackets to ensure a hassle-free installation; mount anywhere space permits
• Same bracket footprint as the Tru-Cool® 4739 transmission cooler while adding over 10,000 BTUs of cooling
• For more information on Diesel Site call us at 1-859-737-4966
